Overview

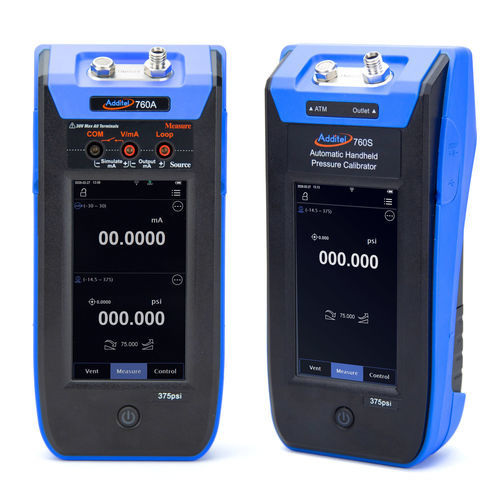

The Additel ADT760A is a high-performance automatic portable pressure calibrator designed for field accuracy and mobility. Weighing under 1.8 kg, it integrates an electric pump, an internal controller and interchangeable pressure sensor modules. The ADT760A features a capacitive touchscreen and four measurement channels (internal pressure, two external pressure channels and one electrical channel). The ADT760S is the version without electrical measurement/sourcing, suited for gauge calibration and pressure measurement with centralized display.

Main features

• Automatic generation and control of pressure up to 25 bar (375 psig).
• Fully automatic pressure calibrator with built-in pump (replaces manual pumps).
• Three range configurations: LLP (low pressure), D (differential/relative), MA (vacuum to 25 bar.g).
• Accuracy up to 0.01% FS depending on model/module.
• Interchangeable internal ADT155 pressure modules for multiple ranges, including very low pressure.
• HART communication option and data logging (DL models for ADT760A).
• Non‑electrical version available: ADT760S.
• Mass < 1.8 kg for handheld use and easy transport.
• Communications: USB, Wi‑Fi and Bluetooth.
• Data logging and task management features (DL option on ADT760A).
• Contamination prevention system (CPS option).
• Support for external pressure modules (two external channels).

General specifications (excerpts)
Specification | 760-LLP | 760-D | 760-MA
Maximum pressure range | ±30 inH2O (±75 mbar) | -12.5 to 35 psi (-0.86 to 2.5 bar) | -12.5 to 375 psig (-0.86 to 25 bar.g)
Accuracy | 0.05% FS | 0.01 or 0.02% FS | 0.01 or 0.02% FS
Stability | <0.005% FS (modules) | <0.005% FS | <0.005% FS
Pressure type | Differential, relative | Differential, relative | Relative, absolute
Overpressure indication | 120% (all models) | 120% | 120%
Resolution | 6 digits (all models) | 6 digits | 6 digits
Available units | Pa, hPa, kPa, mPa, bar, mbar, psi, mmHg, inH2O, etc. | | |
Pressure connection | Swaged fittings / hoses with adapters 1/4 BSP, 1/4 NPT, M20 / 1/8 BSPF | Hoses, filters to 1/4 BSP / 1/4 NPT / M20FG 1/8 BSPF | Hoses, filters to 1/4 BSP / 1/4 NPT / M20FG 1/8 BSPF
Rise time | <30 s (30 inH2O/100 ml) | <10 s (35 psi/5 ml) | <90 s (300 psi/5 ml)

Electrical measurements (ADT760A only, excerpts)
Function | Range | Resolution | Accuracy | Note
Current measurement | ±30.0000 mA | 0.1 µA | ±(0.01% reading + 0.005% µA) | Impedance <10 Ω
Voltage measurement | ±30.0000 V | 0.1 mV | ±(0.01% reading + 0.005% FS) | Impedance >10 MΩ
Current source | 0.000 to 22.000 mA | 1 µA | ±(0.02% reading + 0.01% FS) | 20 mA @1K
DC 24V supply | 24 V | — | ±1 V | 100 mA max load
Switch measurement | Open/close measurement; suited for mechanical pressure switches and PNP/NPN digital switches
Temperature compensation | 8°C to 38°C

Internal ADT155 modules (examples)
ADT155-DP025: ±0.25 inH2O (±0.62 mbar) – accuracy ±0.2% FS
ADT155-DP050: ±0.5 inH2O (±1.25 mbar) – accuracy ±0.1% FS
ADT155-DP1 / DP2 / DP5 / DP10 / DP20 / DP30 / DP50 / DP100 / DP150 / DP300 / DP400 / DP800 / DP1K: various ranges and accuracies up to 0.02% FS for high-range modules
CPx modules (e.g. CP10, CP15, CP30, CP35, CP50, CP100, CP150, CP200, CP300, CP375) for relative pressures up to 25 bar depending on reference

Included accessories (excerpts)

• ADT100-760-KIT adapters (fitting kit: G1/8M to 1/4 NPTF, G1/8M to G1/4F, G1/8M to M20F).
• ADT100-760-HOSE: 1.5 m hose (not supplied on LLP model).
• 9819-X mains adapter 110V/220V.
• 9724 Li‑ion battery (1 pc).
• Measurement leads for ADT760A (set of 3).
• User manual on CD and ISO17025 calibration certificate provided.

Optional accessories (excerpts)

• Contamination prevention system (ref. 9231) — not compatible with LLP.
• Additional pressure modules (ADT155 variants) and connection cables.
• Hose and manifold kits (ref. ADT128-xx depending on fitting).
• Soft case (9913-760-SC) or hard case (9914-760).

Technical features / specifications

• Channels: 4 total (1 electrical for measure/simulate, 1 internal pressure generation/measure, 2 external pressure sensor channels).
• Protection: IP52 (limited dust and water spray protection).
• Battery: rechargeable Li‑ion, runtime ~10 hours, recharge ~4 hours.
• Display: 854 x 480 color TFT capacitive touchscreen.
• Communications: USB, Wi‑Fi, Bluetooth.
• Mass: < 1.8 kg.
• Dimensions: 235 x 110 x 70 mm.
• Certificate: ISO17025 calibration certificate supplied.
• HART communication: optional (ADT760-X-DL model only).
• Data logging: optional (ADT760-X-DL model only), capacity up to 1 million records with date/time.
• Task documentation: optional (ADT760-X-DL), up to 250 programmable tasks.
• Automatic functions: pressure switch test, automatic stepping, leak test.
• Electrical protection: protected to 30 V.
• Multi‑language interface: English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese.
• Pump life: > 500,000 cycles.
• Power: rechargeable Li‑ion battery, external mains adapter (110/220 V), 10 V output.
• Environmental specs: operating 0°C to 50°C, 0–90% RH, altitude < 3000 m; storage -20°C to 70°C; vibration 4g (20–2000 Hz); shock 8g (1 m drop test).
• Warranty: 1 year (battery excluded).
