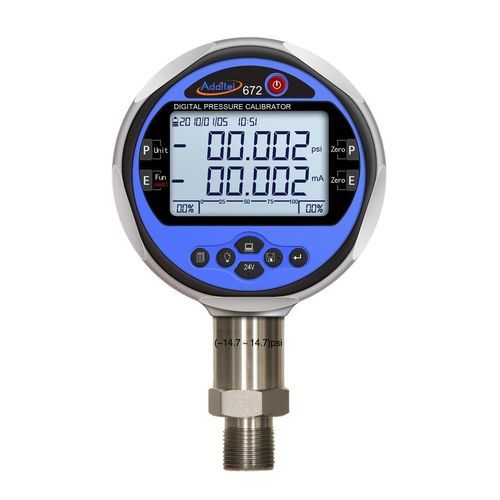

Multifunction calibrator ADT 672

for mA signalspressurefor pressure gauges

Overview
The ADDITEL ADT 672 digital pressure calibrator, based on a microprocessor and silicon sensors, provides reliable, accurate and cost-effective pressure measurements up to 4200 bar. Each sensor is aged, tested and protected before assembly to ensure the declared performance.

Main functions

• Available accuracies: 0.02% / 0.05% / 0.1% of full scale
• Temperature compensation for improved accuracy
• Built-in HART communication with onboard HART communicator
• 24 V loop power for transmitters
• MIN / MAX / HOLD functions
• Dual 6-digit display (6-digit resolution)
• Pressure switch testing
• Measurement and simulation of voltage and current electrical signals
• Recording: datalogger with 30 files of 40 records, manual or automatic mode, adjustable recording interval

Measurement ranges
The ADT 672 series is suitable for gauge, absolute, dynamic and differential pressure measurement. The instrument is HART compatible and can calibrate a HART transmitter without disturbing its HART signal. The integrated HART communicator allows reading and updating calibration-related information directly from the device.

Available units
Pa, kPa, MPa, psi, bar, mbar, kgf/cm2, inH2O (4°C), mmH2O (4°C), inHg (0°C), mmHg (0°C).

Frequency and compensation
Measurement frequency: 3.5 measurements/s. Temperature compensation: -10 to 50°C.

Connections
Pressure connections: for ≤1000 bar: 1/4" NPT male, 1/4" BSP male, M20×1.5 male. For ≥1000 bar: 1/4" HP female or male (Autoclave F-250-C, 9/16"-18 UNF-2B or Autoclave M-250-C, 9/16"-18 UNF-2A). Differential test hose Ø6 mm. Other connections on request.

Tables - Gauge pressure
Model | Pressure range (bar) | Media | Accuracy (% FS) | Overpressure
V15 | -1.0 | G | 0.02 (0.05) | 3X
GP2 | 0.16 | G | 0.05 | 3X
GP5 | 0.35 | G | 0.05 | 3X
GP10 | 0.7 | G | 0.02 (0.05) | 3X
GP15 | 1 | G, L | 0.02 (0.05) | 3X
GP30 | 2 | G | 0.02 (0.05) | 3X
GP50 | 3.5 | G | 0.02 (0.05) | 3X
GP100 | 7 | G | 0.02 (0.05) | 3X
GP150 | 10 | G | 0.02 (0.05) | 3X
GP300 | 20 | G, L | 0.02 (0.05) | 3X
GP500 | 35 | G, L | 0.02 (0.05) | 3X
GP600 | 40 | G, L | 0.02 (0.05) | 3X
GP1K | 70 | G, L | 0.02 (0.05) | 3X
GP2K | 140 | G, L | 0.02 (0.05) | 3X
GP3K | 200 | G, L | 0.02 (0.05) | 3X
GP5K | 350 | G, L | 0.02 (0.05) | 3X
GP6K | 400 | G, L | 0.02 (0.05) | 3X
GP10K | 700 | G, L | 0.02 (0.05) | 2X
GP15K | 1000 | G, L | 0.05 (0.1) | 2X
GP20K | 1400 | G, L | 0.05 (0.1) | 2X
GP25K | 1600 | G, L | 0.1 | 1.5X
GP30K | 2000 | G, L | 0.1 | 1.5X
GP36K | 2500 | G, L | 0.1 | 1.5X
GP40K | 2800 | G, L | 0.1 | 1.35X
GP50K | 3500 | G, L | 0.1 | 1.2X
GP60K | 4200 | G, L | 0.1 | 1.1X

Tables - Absolute pressure
Model | Pressure range (bar) | Media | Accuracy (% FS) | Overpressure
AP5 | 0.35 | G | 0.1 | 3X
AP10 | 0.7 | G | 0.1 | 3X
AP15 | 1.0 | G | 0.1 | 3X
AP30 | 2.0 | G | 0.1 | 3X
AP50 | 3.5 | G | 0.1 | 3X
AP100 | 7.0 | G, L | 0.05 (0.1) | 3X
AP300 | 20 | G, L | 0.05 (0.1) | 3X
AP500 | 35 | G, L | 0.05 (0.1) | 3X
AP1K | 70 | G, L | 0.05 (0.1) | 3X
AP3K | 200 | G, L | 0.05 (0.1) | 3X
AP5K | 350 | G, L | 0.05 (0.1) | 3X

Tables - Dynamic pressure
Model | Pressure range (bar) | Media | Accuracy (% FS) | Overpressure
CP2 | ±0.16 | G | 0.05 | 3X
CP5 | ±0.35 | G | 0.02 (0.05) | 3X
CP10 | ±0.7 | G | 0.02 (0.05) | 3X
CP15 | ±1 | G | 0.02 (0.05) | 3X
CP30 | -1 to 2 | G | 0.02 (0.05) | 3X
CP100 | -1 to 7 | G, L | 0.02 (0.05) | 3X
CP150 | -1 to 10 | G, L | 0.02 (0.05) | 3X
CP300 | -1 to 20 | G, L | 0.02 (0.05) | 3X

Tables - Differential pressure
Model | Pressure range (bar) | Media | Accuracy (% FS) | Overpressure
DP1 | ±2.5 | G | 0.05 | 100X
DP2 | ±5.0 | G | 0.05 | 100X
DP5 | ±10 | G | 0.05 | 50X
DP10 | ±25 | G | 0.05 | 20X
DP20 | ±50 | G | 0.05 | 20X
DP30 | ±75 | G | 0.05 | 20X
DP50 | ±160 | G | 0.05 | 3X
DP150 | ±350 | G | 0.025 | 3X
DP300 | ±700 | G | 0.025 | 3X

Measurement and simulation of electrical signals
Connection: Ø4 mm sockets. DC voltage: ±30.0000 V, accuracy ±(0.02% L + 0.003% FS). DC current: 30.0000 mA, accuracy ±(0.02% L + 0.003% FS). Loop power: 24 V ±0.5 V max: 50 mA; protected at 120 mA. Pressure switch: open/closed (1 - 12 V if switch defective).

Additional specifications

• Pressure switch test: control of trigger pressure levels
• HART communication: read and update common HART commands
• Statistical calculation: MIN / MAX
• HOLD function: measurement freeze
• Datalogger: capacity 30 files × 40 records, manual or automatic mode, adjustable interval

Technical specifications / characteristics

• Dimensions Ø x W x H: Ø 120 x 46 x 184 mm
• Weight: 700 g
• Display: backlit LCD, 6-digit resolution, digit height 16.5 mm, dual display
• Materials: aluminum housing, 316LSS connections
• Power: rechargeable Li-Ion battery; autonomy: 40 hours; recharge time: 4 hours; mains adapter: 10 V; external power: 110 / 220 V
• Communication: RS232
• Operating range: -20 to 70°C (RH: 95% non-condensing)
• Reference conditions: 23°C ±3°C
• HART compatibility and integrated HART communicator
• Recording: built-in datalogger, 30 files × 40 records
• Selectable display units (11 selectable units)
