Ps/Pt adaptator kit ADT 104 HP

Presentation
Set of adapters: 1/4HP male (Autoclave M-250-C) to various connectors (17 pcs, supplied in case). Adapters rated for pressures above 1000 bar up to 2800 bar.

Compatibility

• Compatible with Additel 949 and 959 pumps
• Compatible with ADT 681, ADT 672 and ADT 680 (high pressure)

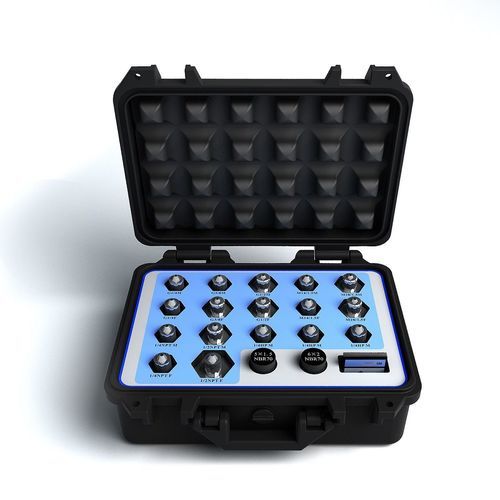

Contents of the set

• 17 adapter pieces, supplied in carrying case

Table - Model | Description | Max Pressure
ADT100-HPM-M14F | Adapter, 1/4HP male to M14X1.5 female | 15,000 psi
ADT100-HPM-M20F | Adapter, 1/4HP male to M20X1.5 female | 15,000 psi
ADT100-HPM-BSPF4 | Adapter, 1/4HP male to 1/4BSP female | 15,000 psi
ADT100-HPM-BSPF3 | Adapter, 1/4HP male to 3/8BSP female | 15,000 psi
ADT100-HPM-BSPF2 | Adapter, 1/4HP male to 1/2BSP female | 15,000 psi
ADT100-HPM-NPTF4 | Adapter, 1/4HP male to 1/4NPT female | 15,000 psi
ADT100-HPM-NPTF2 | Adapter, 1/4HP male to 1/2NPT female | 15,000 psi
ADT100-HPM-M14M | Adapter, 1/4HP male to M14X1.5 male | 40,000 psi
ADT100-HPM-M20M | Adapter, 1/4HP male to M20X1.5 male | 40,000 psi
ADT100-HPM-BSPM4 | Adapter, 1/4HP male to 1/4BSP male | 15,000 psi
ADT100-HPM-BSPM3 | Adapter, 1/4HP male to 3/8BSP male | 40,000 psi
ADT100-HPM-BSPM2 | Adapter, 1/4HP male to 1/2BSP male | 40,000 psi
ADT100-HPM-NPTM4 | Adapter, 1/4HP male to 1/4NPT male | 15,000 psi
ADT100-HPM-NPTM2 | Adapter, 1/4HP male to 1/2NPT male | 15,000 psi
ADT100-HPM-HPM | Adapter, 1/4HP male to 1/4HP male (3 pcs) | 60,000 psi

Characteristics / technical specifications

• Number of pieces: 17 (supplied in carrying case)
• Input connection: 1/4HP male (Autoclave M-250-C)
• Connection types included: M14X1.5 (f/m), M20X1.5 (f/m), 1/4BSP (f/m), 3/8BSP (f/m), 1/2BSP (f/m), 1/4NPT (f/m), 1/2NPT (f/m), 1/4HP to 1/4HP (3 pieces), etc.
• Maximum pressure: depends on model (e.g. 15,000 psi, 40,000 psi, 60,000 psi)
• Application: high-pressure adapters for measurement systems and high-pressure pumps
