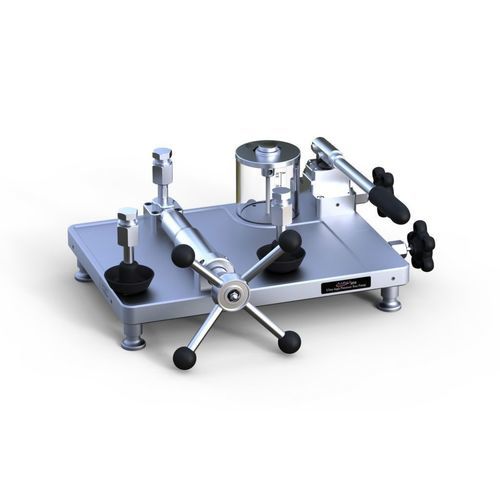

Hydraulic piston pump ADT 959

manualaluminumcopper

Overview
The ADDITEL 959 manual hydraulic pump generates and controls pressure up to 2800 bar (40,000 psi). It features a dual-piston system for filling large-volume systems under pressure (420 ml reservoir) while providing fine pressure adjustment both increasing and decreasing. An isolation valve protects the calibration volume to minimise leakage and stabilise generated pressure. Three quick-release, hand-tight connectors enable fast instrument connections without tools or sealing tape. The 959 is intended for calibration of gauges and transmitters in a laboratory environment.

Connections and ports

• Test instrument connection: autoclave F-250C, 9/16" 18UNF female
• Reference connection: autoclave F-250C, 9/16" 18UNF female
• 1/2 BSP available on request

Pressure port options

• AF: autoclave fitting
• B2: 1/2 BSP female
• X: on request

Included accessories

• O-ring seals: 20 pcs
• User manual
• 9201: 250 ml oil

Optional accessories

• ADT102: 1/4 NPT male adapters to various hand-tight female connections (25 pcs)
• ADT104: 1/4 HP male adapters to various hand-tight female connections (17 pcs)
• ADT100-595-HK: test hose kit, 2800 bar, expansion reservoir for ADDITEL 959
• 9908: transportation case for ADDITEL 959 and 2 gauges
• ADT959-MK: maintenance kit for pump 959
• 9201: bottle of diethylhexyl sebacate oil

Features / technical specifications

• Fluid: mineral oil or distilled water (option)
• Pressure range: 0 to 2800 bar (0 to 40,000 psi)
• Reservoir volume: 420 ml
• Piston fine-adjust volume: 1.5 ml
• Materials: stainless steel adapters; body in stainless steel / aluminium / copper
• Seals: Buna-N
• Dimensions: height 175 mm; base 455 mm x 380 mm
• Weight: 13 kg
• Warranty: 1 year
• Connections: hand-tight connectors for reference gauge and gauge under test
• Test instrument connection: autoclave F-250C, 9/16" 18UNF female
• Available pressure ports: AF (autoclave), B2 (1/2 BSP female), X (on request)
