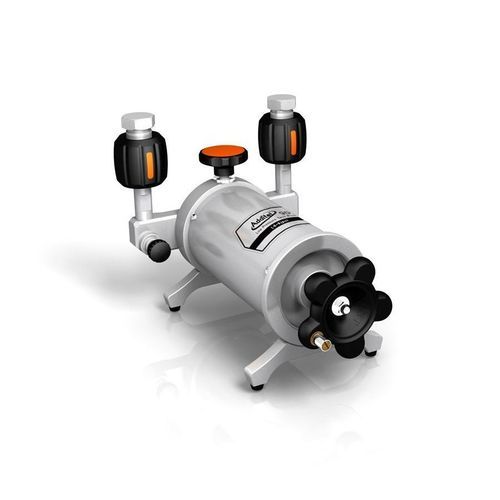

Pneumatic calibration pump ADT 901

manualfor pressure generationlow-pressure

Description
The ADDITEL ADT 901 pneumatic hand pump is a manual device for generating and controlling pressure in the range -0.4 to 0.4 bar (-6 to 6 psi). A fine adjustment screw provides pressure setting resolution of 0.001 mbar. The pump features enhanced stability through a reduced isothermal chamber that minimizes the influence of ambient temperature. Its design omits a check valve to improve stability and reduce maintenance operations. Two hand-tighten connections allow quick attachment and removal of gauges without sealing tape or wrenches. The pump is suited to very low-pressure applications and the calibration of transmitters and gauges in the field or laboratory.

Materials and components

• Adapters: stainless steel
• Body: stainless steel / aluminium / copper
• Seals: Buna-N

Models and connections

• Version: ADT901B – low-pressure pneumatic pump, -0.4 to 0.4 bar (specify pressure connection)
• Pressure port options: N = 1/4 NPT male, N2 = 1/2 NPT male, B = 1/4 BSP male, M = M20×1.5

Accessories supplied and optional

• Standard included accessories: O-ring seals (20 pcs), user manual
• Optional accessories: ADT 901-kit (test kit for ADT 901: hose, connector, etc.), ADT901-HD (holding system), ADT102 (1/4 NPT male to various hand-tight female adapters, 25 pcs), ADT103 (1/4 NPT male to various hand-tight female adapters, 10 pcs), ADT100-HTK (1.5 m test hose kit), 9901-901 (carrying case for ADT 901 and 2 gauges), ADT901B-MK (maintenance kit), 9240 (rubber holding system)

Recommended use
Ideal for very low-pressure applications and for calibration and verification of gauges and transmitters, both on-site and in the laboratory.

Characteristics / technical specifications

• Media: air
• Pressure range: -0.4 to 0.4 bar (-6 to 6 psi)
• Fine adjustment: 0.001 mbar
• Height: 145 mm
• Base: 245 mm x 165 mm
• Weight: 1.6 kg
• Connection: hand-tight connectors for reference gauge and test gauge
• Test instrument connection: 1/4 NPT female, 1/4 BSP female, or M20 x 1.5 female
• Reference connection: 1/4 NPT female, 1/4 BSP female, or M20 x 1.5 female
• Materials: stainless steel adapters, stainless steel/aluminium/copper body, Buna-N seals
• Warranty: 1 year
