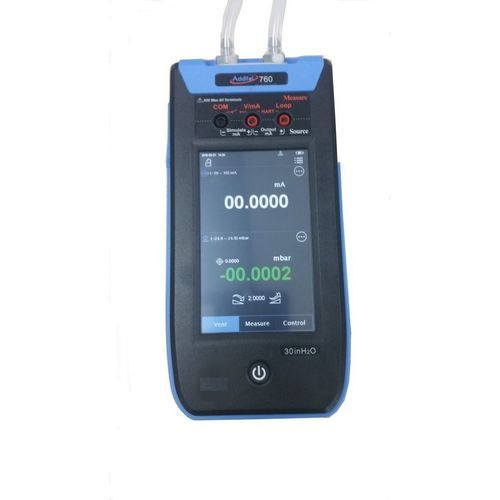

Multifunction calibrator ADT760 LLP

for mA signalspressurefor pressure sensors

Overview
The ADT760 LLP is a portable, precision, fully automatic differential pressure calibrator designed for measurement and calibration of very low pressures (Delta P) for sensors and transmitters. It automatically generates pressure from 90% relative vacuum up to 75 mbar (±7500 Pa with DP30) and controls generated pressure with stability down to 0.005% of the internal sensor full scale and measurement accuracy up to 0.05% FS.

Key features

• Pressure generation by internal automatic pump (from 90% vacuum to 7500 Pa depending on installed module).
• Control stability: 0.005% of internal module full scale.
• Measurement accuracy up to 0.05% FS; optional ADT155 internal modules for reduced ranges and higher accuracy.
• Interchangeable internal pressure module (ADT155 series).
• Color touchscreen interface (800×480 TFT).
• Measure and simulate electrical signals (mA / V) for transmitter tests; current output 0–24 mA, accuracy 0.01% reading + 0.005% FS.
• 24 VDC loop power output (protected up to 30 V).
• Test automation, recording and data logging (optional DL models).
• HART support (optional by model).
• Rechargeable Li-ion battery (~10 hours operation).
• Portable: weight <1.8 kg; dimensions 235×110×70 mm.

Applications and extensions
For very low pressures and increased accuracy, the ADT760 LLP can be fitted with ADT155 internal sensors (reduced ranges, e.g. ADT155 DP025: 62 Pa with 0.003 Pa stability and 0.13 Pa accuracy). Two digital ADT160A pressure modules can be connected to extend measurement range. The automatic pump provides pressure generation and setpoint control with the precision of the installed internal module.

Electrical and automation functions

• Current measurement: ±30.0000 mA, resolution 0.1 µA, accuracy ±(0.01% reading + 0.005% FS), impedance <10 Ω.
• Voltage measurement: ±30.0000 V, resolution 0.1 mV, accuracy ±(0.01% reading + 0.005% FS), impedance >10 MΩ.
• Current output: 0.000–22.000 mA, resolution 1 µA, accuracy ±(0.02% reading + 0.01% FS).
• Measure and simulate switch On/Off (3–24 V, PNP/NPN) and automatic switch testing.
• Temperature-compensated measurements (calibration coefficients stored in pressure module).

Internal modules and ranges
DP025 | ±0.25 inH2O | ±62 Pa | accuracy 0.2% FS | overpressure 100×
DP050 | ±0.5 inH2O | ±125 Pa | accuracy 0.1% FS | overpressure 100×
DP1 | ±1 inH2O | ±250 Pa | accuracy 0.05% FS | overpressure 100×
DP2 | ±2 inH2O | ±500 Pa | accuracy 0.05% FS | overpressure 100×
DP5 | ±5 inH2O | ±1000 Pa | accuracy 0.05% FS | overpressure 50×
DP10 | ±10 inH2O | ±2500 Pa | accuracy 0.05% FS | overpressure 20×
DP20 | ±20 inH2O | ±5000 Pa | accuracy 0.05% FS | overpressure 20×
DP30 | ±30 inH2O | ±7500 Pa | accuracy 0.05% FS | overpressure 20×

General characteristics
Channels: 4 total — 1 electrical (measure/simulate), 1 internal pressure (generate/measure), 2 external sensor pressure channels.
Protection: IP54.
Battery: Li-ion rechargeable (~10 h), charge 4 h outside case, 6 h on case.
Display: 800×480 color TFT touchscreen.
Communications: USB, Wi‑Fi, Bluetooth.
Weight: <1.8 kg. Dimensions: 235×110×70 mm.
Certificate: NIST-traceable certificate with data provided.
Multi-language interface: English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese.
Pump life: >500,000 cycles.
Power: Rechargeable Li-ion battery, external adapter 110/220 V.

Models and accessories
Example references: ADT760-LLP (portable automatic calibrator, DP30 included), ADT760-LLP-DL (with HART and data logging), ADT760 LLP-X (internal sensor configurable with ADT155).
Included accessories (examples): 110/220 V power adapter, Li-ion battery, measurement cables set, user manual CD, NIST-traceable certificate.
Optional accessories (examples): ADT161A (ADT160A) pressure module, module connection cable 9060, Additel/Cal task management software, filters, mounts, soft/hard carrying cases (9913-760-SC / 9914-760).

Optional ADT155 modules
ADT155-20-DP025: ±0.25 inH2O (±62 Pa) ±0.2% FS
ADT155-10-DP050: ±0.5 inH2O (±125 Pa) ±0.1% FS
ADT155-05-DP1: ±1 inH2O (±250 Pa) ±0.05% FS
ADT155-05-DP2: ±2 inH2O (±500 Pa) ±0.05% FS
ADT155-05-DP5: ±5 inH2O (±1000 Pa) ±0.05% FS
ADT155-05-DP10: ±10 inH2O (±2500 Pa) ±0.05% FS
ADT155-05-DP20: ±20 inH2O (±5000 Pa) ±0.05% FS
ADT155-05-DP30: ±30 inH2O (±7500 Pa) ±0.05% FS

Technical specifications

• Model: ADT760 LLP (DP30 sensor included); DL/X variants for HART / data logging options.
• Max pressure range: ±30 inH2O = ±75 mbar = ±7500 Pa (DP30 module).
• Accuracy: typ. 0.05% FS for standard modules.
• Control stability: <0.005% FS (internal module).
• Pressure resolution: 6 digits.
• Units available: Pa, hPa, kPa, mPa, bar, mbar, psi, mmHg, inH2O@4°C/20°C, etc.
• Pressure connection: barbed fitting.
• Pressure rise time: <30 s (75 mbar / 100 ml volume) typical.
• Current/voltage measurement: see values and accuracies above (±30 mA / ±30 V).
• Temperature compensation: 5°C to 35°C.
• IP54, operating 0°C to 50°C, storage -20°C to 70°C, vibration 4 g (20–2000 Hz), shock 8 g (drop test 1 m).
• Weight <1.8 kg; dimensions 235×110×70 mm.
• Data logging: optional (DL model) up to 1,000,000 records with timestamp.
