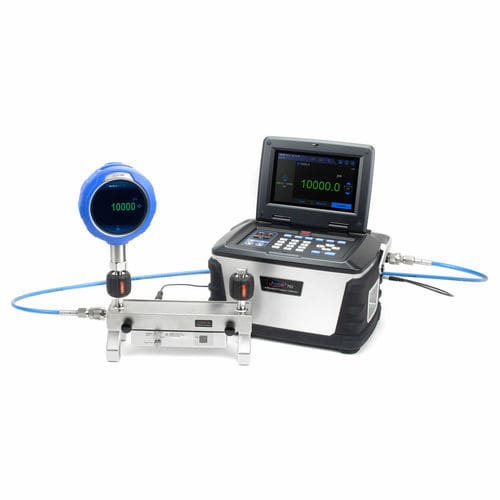

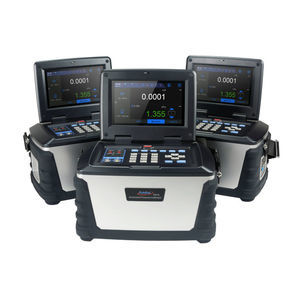

Pressure calibrator ADT762W

for mA signalsfor pressure gaugesfor pressure sensors

Overview
Designed for both field and laboratory use, the portability and precision of this advanced unit make it a reference calibrator for calibration labs and field technicians. Fully automated support for calibration of pressure transmitters, pressure switches, analog and digital gauges, and pressure sensors. HART/PROFIBUS PA device support. Integrated task functionality and data logging. Connectivity: Wi‑Fi, LAN, Bluetooth, USB and Ethernet. ISO 17025 accredited calibration certificate with data included as standard.

Key features

• Automated generation and control of pressure up to 1000 bar
• Accuracy up to 0.01 % FS (dual-range)
• Dual-range with manual or auto-selected mode
• Designed for use with deionized water (integrated fluid management)
• Control stability ≤ 0.005 % FS
• Portable — field and laboratory use (Li‑ion battery)
• Supports two external pressure modules
• Wi‑Fi, LAN, Bluetooth, USB and Ethernet communications
• Full HART field communicator — automatic and manual HART calibration modes
• Data logging and task management (up to 1,000 documented tasks)
• Patented electric pump technology and integrated auto‑purge

Dual-range accuracy
The ADT762W can automatically switch between internal calibration ranges according to actual control pressure. Additel supplies dedicated calibrations for range pairs (e.g. 0–200 & 0–700 bar or 0–400 & 0–1000 bar). Range selection can be set to automatic or chosen manually by the operator.

Integrated auto‑purge
Automatic purge system for rapid removal of air from the hydraulic circuit, simplifying setup and reducing time and maintenance.

Dual‑port manifold with fluid management
The unit is designed for use with deionized water only. It includes a supplied manifold and a fluid management system to reduce stagnant water and evacuate residual water after venting to extend service life and lower maintenance costs.

Documented task functionality
The built‑in task application lets users create, store and execute calibration procedures without a PC: automatic error analysis, test report generation and local result storage (up to 1,000 documented tasks and 1,000,000 timestamped readings).

HART bimode communication
Full support for HART transmitters: read, configure and calibrate directly from the ADT762W in automatic or manual HART mode. DD files updated periodically.

Pressure specifications
Specifications: Pressure range: 1–1000 bar (relative). Range selection: models with manual options (200/700 bar or 400/1000 bar) or automatic range. Available accuracies: 0.01 % FS and 0.02 % FS depending on module (e.g. GP15K-01 / GP10K-01 = 0.01 % FS for 0–1000 / 0–700 bar). Resolution: 7 digits (on some ranges) or 6 digits. Maximum external charge capacity: max 80 ml at 700 bar (50 ml recommended). Reservoir: max 350 ml, integrated filter. Medium: deionized water. Control stability: ≤ 0.005 % FS (depending on module range). Stability duration: > 5 minutes. Pressure modules: integrated dual-range module; compatible external measuring modules: all ADT161 modules (various ranges and 0.01 % or 0.02 % FS accuracy depending on version).

Electrical and interface specifications
User interface: color touchscreen and keypad. Display: 7" TFT touchscreen 800 x 480 colors. Enclosure rating: IP31. Power: dedicated Li‑ion battery or AC adapter (16–30 V). Battery: rechargeable Li‑ion, approx. 12 hours runtime, recharge < 5 hours. Weight: 12.8 kg (28 lb) without stand. Size: 300 x 220 x 192 mm. Communications: Wi‑Fi, LAN, Bluetooth, USB, Ethernet. Loop source: 24 V ±1 V, max load 50 mA. Data storage: > 8 GB. Data logging: up to 1,000,000 readings (data and timestamp). Automation functions: switching tests, automatic stepping, leak test. Interface localization: English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese and Russian. Pump life: > 1,000,000 cycles. Environmental: operating temperature 0 °C to 50 °C; storage -20 °C to 60 °C; humidity < 90 % non‑condensing. Certificate: ISO 17025 accredited calibration certificate provided with NIST traceable data. Compliance: CE. Software compatibility: ACal, Additel Land and Additel Link (mobile app access). Warranty: 1 year.

Models and options
Available examples: ADT762W-GP15K-01 (1000 bar, 0.01 % FS), ADT762W-GP15K-02 (1000 bar, 0.02 % FS), ADT762W-GP10K-01 (700 bar, 0.01 % FS), ADT762W-GP10K-02 (700 bar, 0.02 % FS). Pressure manifold options ADT 107-x with ports (1/4" NPT female, 1/2" NPT female, 1/4" BSP female, 1/2" BSP female, M20x1.5 female).

Included accessories (summary)

• Measurement leads 9022 (2 sets, 4 pieces)
• USB cable (1 pc)
• Rechargeable Li‑ion battery 9725 (1 pc)
• External AC adapter 9818 (110/220 V) (1 pc)
• Funnel (1 pc)
• High‑pressure hose ADT100‑762 (1 pc)
• ADT107‑X‑KIT (two‑port base and zero‑return communication cable) (1 pc)
• Small accessory case (1 pc)
• Transport plugs (1 pc)
• Carrying case 9907‑762 (1 pc)
• Reservoir O‑rings (5 pcs)
• Pressure module connection cable 9060 (1 pc)
• Right‑angle connector ADT100‑762‑X (1 pc)
• ISO 17025 accredited calibration certificate (included)

Technical characteristics / specifications

• Model: ADT762W
• Brand: Additel
• Pressure range: 1–1000 bar (relative)
• Accuracy: up to 0.01 % FS (depending on version/module)
• Range modes: automatic or manual (internal dual‑range)
• Control stability: ≤ 0.005 % FS
• Media: deionized water
• Resolution: 6 or 7 digits depending on configuration
• External measuring modules: ADT161 compatible (0.01 % or 0.02 % FS)
• Display: 7" TFT touchscreen (800 x 480)
• Power: Li‑ion battery (≈12 h) or AC adapter (16–30 V)
• Weight: 12.8 kg
• Dimensions: 300 x 220 x 192 mm
• Communications: Wi‑Fi, LAN, Bluetooth, USB, Ethernet; HART/Profibus PA supported
• Storage: > 8 GB; logging: up to 1,000,000 readings
• Automation: switching tests, automatic steps, leak test, documented tasks (up to 1,000)
• Pump life: > 1,000,000 cycles
• Operating temperature: 0 °C to 50 °C
• Certificate: ISO 17025 (included)
• Compliance: CE
