Pneumatic calibration pump ADT 912manuallow-pressurefor pressure and vacuum
Add to favorites
Compare this product
Characteristics
- Operation
- manual, pneumatic
- Applications
- for pressure and vacuum, low-pressure
Description
Description

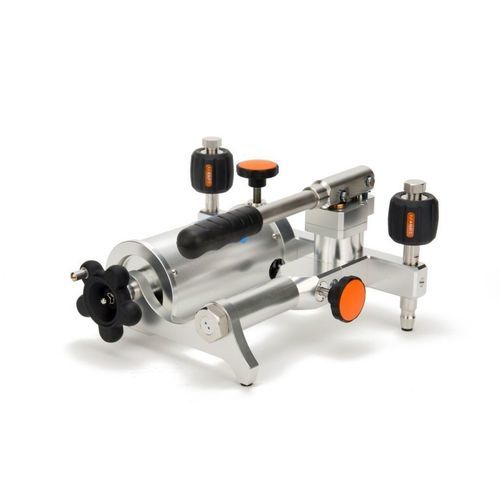

The ADDITEL 912 pneumatic pump is a manual pressure generator and controller providing a range from -0.95 bar to 4 bar (60 psi). It features a fine adjustment screw that allows pressure trimming down to 0.001 mbar. The pump is built with an isothermal chamber to reduce external temperature influence and ensure pressure stability. The absence of a check valve reduces internal disturbances and lowers maintenance requirements. Two hand-tightenable connectors enable fast connection and disconnection of gauges without PTFE tape or tools. The unit is suitable for low-pressure applications and for on-site or laboratory calibration of transmitters and pressure gauges.
Key features
Applications
Operation and maintenance
The ADDITEL 912 pneumatic pump is a manual pressure generator and controller providing a range from -0.95 bar to 4 bar (60 psi). It features a fine adjustment screw that allows pressure trimming down to 0.001 mbar. The pump is built with an isothermal chamber to reduce external temperature influence and ensure pressure stability. The absence of a check valve reduces internal disturbances and lowers maintenance requirements. Two hand-tightenable connectors enable fast connection and disconnection of gauges without PTFE tape or tools. The unit is suitable for low-pressure applications and for on-site or laboratory calibration of transmitters and pressure gauges.
Key features
- Pressure range: -0.95 to 4 bar (60 psi)
- Fine adjustment resolution: 0.001 mbar
- Isothermal chamber for improved stability
- Two hand-tightenable connectors for tool-free gauge exchange
Applications
- Calibration of pressure transmitters and manometers
- On-site commissioning and maintenance
- Low-pressure testing in workshop or laboratory
Operation and maintenance
- Manual operation via fine adjustment screw for precise setpoints
- No PTFE tape or wrench required for gauge connections
- Design minimizes maintenance and eases repetitive calibrations
