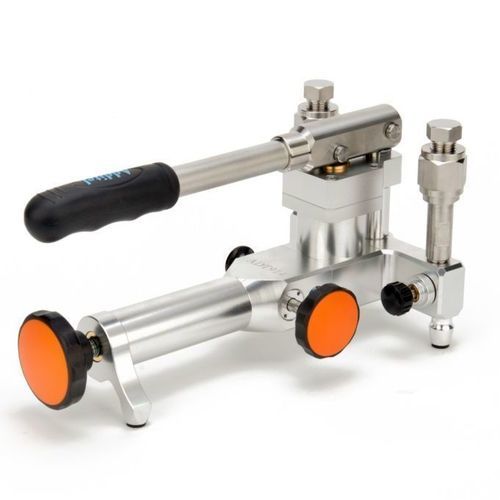

Pneumatic calibration pump ADT 914

manualfor pressure and vacuum

Overview
The ADDITEL ADT 914 pneumatic pump is a manual pressure generator and controller covering -0.95 bar up to 25 bar (375 psi). The fine adjustment screw allows pressure tuning to 0.1 mbar. The pump features a shut-off valve for high stability and reduced maintenance interventions. Two manual-tightening connections enable connection and disconnection of gauges without PTFE tape or wrenches. It is suitable for calibration of transmitters and gauges, on-site or in the laboratory.

Main advantages

• Low-pressure pneumatic generation: -0.95 to 25 bar (-14 to 375 psi).
• Fine adjustment with 0.1 mbar resolution.
• Shut-off valve ensuring excellent stability.
• Manual-tightening connections for quick instrument installation.
• Design adapted for on-site and laboratory calibration operations.

Specifications and construction

• Media: air.
• Pressure ranges: 95% vacuum to 25 bar (-14 to 375 psi).
• Fine adjustment: 0.1 mbar.
• Adapter materials: stainless steel.
• Body: stainless steel / aluminium / copper.
• Seals: Buna-N.

Dimensions & weight

• Height: 130 mm.
• Base: 240 mm x 120 mm.
• Weight: 1.5 kg.

Connections

• Instrument under test connection: 1/4 NPT female, 1/4 BSP female, or M20 x 1.5 female.
• Reference connection: 1/4 NPT female, 1/4 BSP female, or M20 x 1.5 female.
• Pressure port (codes available): N: 1/4 NPT female, N2: 1/2 NPT female, B: 1/4 BSP female, M: M20×1.5 female.

Included accessories (standard)

• O-ring seals: 20 pcs.
• User manual.

Optional accessories

• ADT 914-kit: test kit for 914 pump (hose, connector, etc.).
• ADT102: 1/4 NPT male adapters to various manual-tighten female connections (25 pcs).
• ADT103: 1/4 NPT male adapters to various manual-tighten female connections (10 pcs).
• ADT100-HTK: 1.5 m test hose kit, 1000 bar psi, 1/4 NPT male to multiple manual-tighten female adapters.
• 9901-914: carrying case for ADT 914 and 2 gauges.
• ADT914-MK: maintenance kit for 914 pump.
• 9240: rubber retaining system for gauges.

Characteristics / technical specifications

• Brand: ADDITEL.
• Model: ADT 914.
• Media: Air.
• Pressure range: from -0.95 bar (95% vacuum) to 25 bar (375 psi).
• Fine adjustment: 0.1 mbar.
• Materials: stainless steel adapters; body stainless steel/aluminium/copper; seals Buna-N.
• Dimensions: H 130 mm; base 240 x 120 mm.
• Weight: 1.5 kg.
• Instrument under test connections: 1/4 NPT female, 1/4 BSP female or M20 x 1.5 female.
• Reference connection: 1/4 NPT female, 1/4 BSP female or M20 x 1.5 female.
• Pressure ports available: 1/4 NPT (N), 1/2 NPT (N2), 1/4 BSP (B), M20×1.5 (M).
• Warranty: 1 year.
