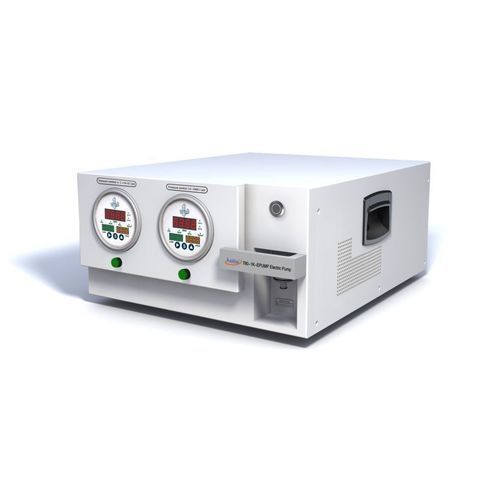

High-pressure calibration pump ADT780-1K –EPUMPfor pressure generationfor vacuum
Add to favorites
Compare this product
Characteristics
- Applications
- for pressure generation, high-pressure, for vacuum
Description
Presentation
Electric pump for air capable of generating vacuum and delivering high pressures up to 75 bar (nominal operation 70 bar). Fitted with an integrated filter and liquid trap to protect downstream equipment.
Summary
Technical characteristics / specifications
Electric pump for air capable of generating vacuum and delivering high pressures up to 75 bar (nominal operation 70 bar). Fitted with an integrated filter and liquid trap to protect downstream equipment.
Summary
- Type: Electric high-pressure air pump
- Function: Vacuum generation and pressure boost up to 75 bar (nominal 70 bar)
- Filtration: Integrated filter and liquid trap
Technical characteristics / specifications
- Pressure range: -0.95 to 75 bar
- Weight: 31.6 kg
- Dimensions: 440 x 235 x 550 mm
- Power supply: 100 to 250 V
- Medium: Air
- Pressure connection port: G1/8F
- Storage temperature: -20°C to 70°C
- Operating environment: 0-95% RH without condensation
- Mounting: Table mounting – optional rack mounting kit
- Control: 2 LEDs with adjustable pressure limits
- Time to reach maximum pressure: Approximately 2 minutes with ADT 780 controller
