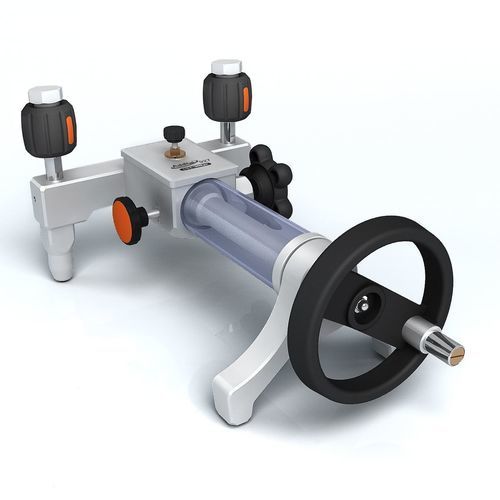

Manual hydraulic pump ADT 927

handaluminumstainless steel

Overview
The ADDITEL 927 hydraulic hand pump is a manual pump designed to generate and control pressure from -0.95 bar (95% vacuum) up to 700 bar (10000 psi).

Main advantages

• Integrated check valve to prevent leaks.
• Adjusting screw engineered for smooth pressure increase and decrease.
• Two hand-tighten connections allowing gauge connection/disconnection without Teflon tape or wrenches.
• Suitable for calibration-by-comparison of transmitters and gauges, in laboratory or field environments.

Specifications and construction

• Compatible media: oil, deionized water.
• Pressure range: -0.95 bar (95% vacuum) to 700 bar (-14 to 10000 psi).
• Materials: stainless steel adapters; stainless steel/aluminium body; Buna-N seals.
• Connections (unit under test / reference): 1/4 NPT female, 1/4 BSP female or M20 x 1.5 female.
• Dimensions: height 135 mm; base 290 mm x 198 mm.
• Weight: 3.2 kg.
• Warranty: 1 year.

Models and pressure ports

• Product reference / displayed model: ADT927 (Hydraulic pump pressure -0.95 to 700 bar).
• Pressure ports (possible configurations): N = 1/4 NPT male; N2 = 1/2 NPT male; B = 1/4 BSP male; M = M20 × 1.5.

Accessories supplied and optional

• Standard accessories included: 20 O-rings, user manual, 250 ml of oil.
• Optional accessories: ADT102 (1/4 NPT male adapters to various hand-tight female fittings, 25 pcs), ADT103 (1/4 NPT male adapters to various hand-tight female fittings, 10 pcs), ADT100-HTK (1.5 m test hose kit, 1000 bar, 1/4 NPT male to various), 9901-927 (carrying case for ADT 927 and 2 gauges), ADT927-MK (maintenance kit), 9201 (diethylhexyl sebacate oil bottle).

Use
Manual pump designed for generation and control of high pressure, suitable for calibration-by-comparison of sensors and gauges in workshop or on-site. Design allows tool-free connection/disconnection of instruments.

Features / technical specifications

• Brand: ADDITEL
• Model: ADT927
• Media: oil, deionized water
• Pressure range: -0.95 bar to 700 bar (-14 to 10000 psi)
• Adapters: stainless steel
• Body: stainless steel / aluminium
• Seals: Buna-N
• Height: 135 mm
• Base: 290 mm x 198 mm
• Weight: 3.2 kg
• Connections unit under test: 1/4 NPT female, 1/4 BSP female, or M20 x 1.5 female
• Reference connection: 1/4 NPT female, 1/4 BSP female, or M20 x 1.5 female
• Available pressure ports (male outlets): 1/4 NPT male (N), 1/2 NPT male (N2), 1/4 BSP male (B), M20×1.5 (M)
• Standard accessories: 20 O-rings, manual, 250 ml oil
• Warranty: 1 year
