Adaptator kit ADT 102

Description

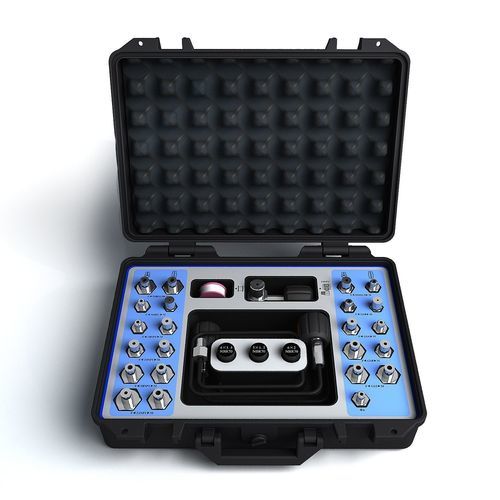

ADT102-N configuration: pressure adapter set centered on a 1/4 NPT male main connector. Delivered as a 25-piece assortment in a carrying case, designed to provide standard thread conversions for pressure testing and hydraulic/instrumentation connections.

Contents and variants

• Set content: 25 adapters delivered in a case
• Main reference shown: ADT102-N (1/4 NPT male)
• Other available variants: 1/2 NPT male, 1/4 BSP male, 1/2 BSP male, M20x1.5 male (depending on reference)

Selected models and maximum pressures (selection)

• ADT100-NPTM4-BSPM8 — 1/4 NPT male to 1/8 BSP male — 1000 bar
• ADT100-NPTM4-BSPM4 — 1/4 NPT male to 1/4 BSP male — 1000 bar
• ADT100-NPTM4-M10M — 1/4 NPT male to M10x1.0 male — 1000 bar
• ADT100-NPTM4-NPTM4 — 1/4 NPT male to 1/4 NPT male — 1000 bar
• ADT100-NPTM4-BARB — 1/4 NPT male to barbed hose fitting — 150 psi
• ADT100-HTK-15K-NPTM4-NPTF4Q — flexible hose kit ~1.5 m, 1/4 NPT male to 1/4 NPT female, ~1000 bar

BSP variants (selection)

• ADT100-BSPM-BSPM8 — 1/4 NPT male to 1/8 BSP male — 1000 bar
• ADT100-BSPM-BSPM4 — 1/4 NPT male to 1/4 BSP male — 1000 bar
• ADT100-BSPM-M20M — 1/4 NPT male to M20x1.5 male — 1000 bar
• ADT100-BSPM-NPTF4RQ — 1/4 NPT male to right-angle 1/4 NPT female (quick clamp) — 1000 bar

Technical specifications

• Pack: 25-piece adapter set, supplied in a case
• Product type: pressure adapter set
• Main connector displayed: 1/4 NPT male (ADT102-N configuration)
• Available thread standards: NPT, BSP, metric (M10, M14, M20), barbed hose fittings, right-angle and quick-clamp variants
• Typical maximum pressure: 1000 bar for most adapters listed
• Exception: BARB (barbed) variant indicated at ~150 psi
• Flexible hose kit option: ADT100-HTK-15K... approx. 1.5 m, 1000 bar

Applications

• Field and bench pressure testing
• Hydraulic system connections and instrumentation
• Temporary conversions between thread standards during maintenance, commissioning or calibration
• Compatibility with common test rigs and pressure gauges
