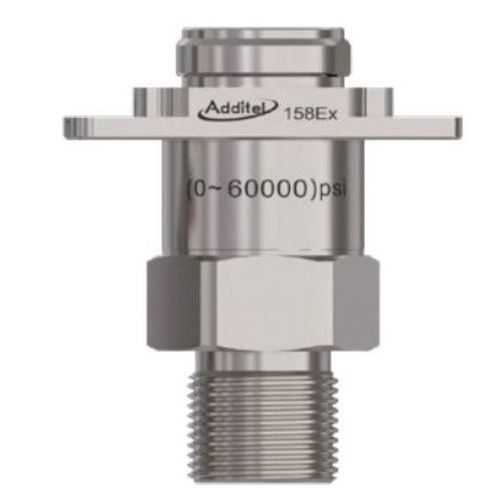

Pressure calibrator external pressure module ADT158EX

Description
The ADT158EX is an integrable digital pressure module from Additel, designed to provide precise, reliable and cost-effective pressure measurement across a wide range of industrial applications. Models with intrinsic safety (Ex) are intended for use with Additel portable calibrators such as the ADT273EX. Each silicon pressure sensor is aged and tested before assembly to ensure optimum performance.

Main features

• Pressure ranges up to 60,000 psi (4,200 bar)
• Pressure measurement accuracy down to 0.02 %FS
• Intrinsic safety (Ex)
• Fully temperature-compensated accuracy

Standard operating conditions
Operating temperature: -10°C to 50°C (14°F to 122°F)
Storage temperature: -20°C to 70°C (-4°F to 158°F)
Relative humidity: up to 95 % RH
Pressure ports (external use only): 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, M20x15
Housing (external use only): stainless steel (SS)
Intrinsic safety: ATEX certified intrinsic safety only with ADT260EX and ADT273EX
Dimensions (Dia x H): 33 mm x 123 mm (1.3 in x 4.84 in)
Weight: 0.4 kg (0.99 lb)
Warranty: 1 year

Pressure measurement specification — Gauge pressure
V15: Range (psi) -15; (bar) -1; Media: G; Accuracy: 0.02 %FS; Burst pressure: 3×
GP2: Range (psi) 2; (bar) 0.16; Media: G; Accuracy: 0.05 %FS; Burst pressure: 3×
GP5: Range (psi) 5; (bar) 0.35; Media: G; Accuracy: 0.05 %FS; Burst pressure: 3×
GP10: Range (psi) 10; (bar) 0.7; Media: G; Accuracy: 0.02 %FS; Burst pressure: 3×
GP15: Range (psi) 15; (bar) 1; Media: G; Accuracy: 0.02 %FS; Burst pressure: 3×
GP30: Range (psi) 30; (bar) 2; Media: G; Accuracy: 0.02 %FS; Burst pressure: 3×
GP50: Range (psi) 50; (bar) 3.5; Media: G, L; Accuracy: 0.02 %FS; Burst pressure: 3×
GP100: Range (psi) 100; (bar) 7; Media: G, L; Accuracy: 0.02 %FS; Burst pressure: 3×
GP150: Range (psi) 150; (bar) 10; Media: G, L; Accuracy: 0.02 %FS; Burst pressure: 3×
GP300: Range (psi) 300; (bar) 20; Media: G, L; Accuracy: 0.02 %FS; Burst pressure: 3×
GP500: Range (psi) 500; (bar) 35; Media: G, L; Accuracy: 0.02 %FS; Burst pressure: 3×
GP600: Range (psi) 600; (bar) 40; Media: G, L; Accuracy: 0.02 %FS; Burst pressure: 3×
GP1K: Range (psi) 1000; (bar) 70; Media: G, L; Accuracy: 0.02 %FS; Burst pressure: 3×
GP1.5K: Range (psi) 1500; (bar) 100; Media: G, L; Accuracy: 0.02 %FS; Burst pressure: 3×
GP2K: Range (psi) 2000; (bar) 140; Media: G, L; Accuracy: 0.02 %FS; Burst pressure: 3×
GP3K: Range (psi) 3000; (bar) 200; Media: G, L; Accuracy: 0.02 %FS; Burst pressure: 3×
GP5K: Range (psi) 5000; (bar) 350; Media: G, L; Accuracy: 0.02 %FS; Burst pressure: 3×
GP10K: Range (psi) 10000; (bar) 700; Media: G, L; Accuracy: 0.02 %FS; Burst pressure: 2×
GP15K: Range (psi) 15000; (bar) 1000; Media: G, L; Accuracy: 0.05 %FS; Burst pressure: 2×
GP20K: Range (psi) 20000; (bar) 1400; Media: G, L; Accuracy: 0.05 %FS; Burst pressure: 1.5×
GP25K: Range (psi) 25000; (bar) 1600; Media: G, L; Accuracy: 0.05 %FS; Burst pressure: 1.5×
GP30K: Range (psi) 30000; (bar) 2000; Media: G, L; Accuracy: 0.05 %FS; Burst pressure: 1.5×
GP36K: Range (psi) 36000; (bar) 2500; Media: G, L; Accuracy: 0.05 %FS; Burst pressure: 1.5×
GP40K: Range (psi) 40000; (bar) 2800; Media: G, L; Accuracy: 0.05 %FS; Burst pressure: 1.35×
GP50K: Range (psi) 50000; (bar) 3500; Media: G, L; Accuracy: 0.1 %FS; Burst pressure: 1.2×
GP60K: Range (psi) 60000; (bar) 4200; Media: G, L; Accuracy: 0.1 %FS; Burst pressure: 1.1×
[1] Sealed gauge above 1000 psi
[2] G = Gas, L = Liquid

Compound pressure
CP2: Range ±2 (psi); ±0.16 (bar); Media: G; Accuracy: 0.05 %PE; Burst: 3×; Overpressure: 1.2×
CP5: Range ±5; ±0.35; Media: G; Accuracy: 0.02 %PE; Burst: 3×; Overpressure: 1.2×
CP10: Range ±10; ±0.7; Media: G; Accuracy: 0.02 %PE; Burst: 3×; Overpressure: 1.2×
CP15: Range ±15; ±1.0; Media: G; Accuracy: 0.02 %PE; Burst: 3×; Overpressure: 1.2×
CP30: Range -15 to 30 psi; -1 to 2.0 bar; Media: G; Accuracy: 0.02 %PE; Burst: 3×; Overpressure: 1.2×
CP50: Range -15 to 50 psi; -1 to 3.5 bar; Media: G; Accuracy: 0.02 %PE; Burst: 3×; Overpressure: 1.2×
CP100: Range -15 to 100 psi; -1 to 7.0 bar; Media: G, L; Accuracy: 0.02 %PE; Burst: 3×; Overpressure: 1.2×
CP300: Range -15 to 300 psi; -1 to 20 bar; Media: G, L; Accuracy: 0.02 %PE; Burst: 3×; Overpressure: 1.2×
CP500: Range -15 to 500 psi; -1 to 35 bar; Media: G, L; Accuracy: 0.02 %PE; Burst: 3×; Overpressure: 1.2×
CP600: Range -15 to 600 psi; -1 to 40 bar; Media: G, L; Accuracy: 0.02 %PE; Burst: 3×; Overpressure: 1.2×
CP1K: Range -15 to 1,000 psi; -1 to 70 bar; Media: G, L; Accuracy: 0.02 %PE; Burst: 3×; Overpressure: 1.2×
CP2K: Range -15 to 2,000 psi; -1 to 140 bar; Media: G, L; Accuracy: 0.02 %PE; Burst: 3×; Overpressure: 1.2×
CP3K: Range -15 to 3,000 psi; -1 to 200 bar; Media: G, L; Accuracy: 0.02 %PE; Burst: 3×; Overpressure: 1.2×
CP5K: Range -15 to 5,000 psi; -1 to 350 bar; Media: G, L; Accuracy: 0.02 %PE; Burst: 3×; Overpressure: 1.2×

Barometric pressure
BP: Range 60 kPa to 110 kPa; Media: G; Accuracy: 40 Pa; Burst pressure: 3×

Compatibility and accessories
The ADT158EX must be used with ADT273EX; it is designed to be mounted and operated only with compatible Additel portable calibrators (ADT273EX/ADT260EX where applicable).
Supplied with ISO 17025 calibration certificate.

Technical specifications / features

• Brand: Additel
• Model: ADT158EX
• Type: Integrable pressure module, intrinsic safety (Ex)
• Measurement ranges: from -15 psi up to 60,000 psi depending on variant (see range table)
• Accuracy: as good as 0.02 %FS (varies by range/model)
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 70°C
• Humidity: up to 95 % RH
• Pressure ports: 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, M20x15
• Housing: stainless steel (SS) for external use
• Dimensions: 33 mm x 123 mm (Dia x H)
• Weight: 0.4 kg
• Warranty: 1 year
• Supplied with: ISO 17025 calibration certificate
