Pneumatic calibration pump ADT 917

manualfor pressure generationhigh-pressure

Overview

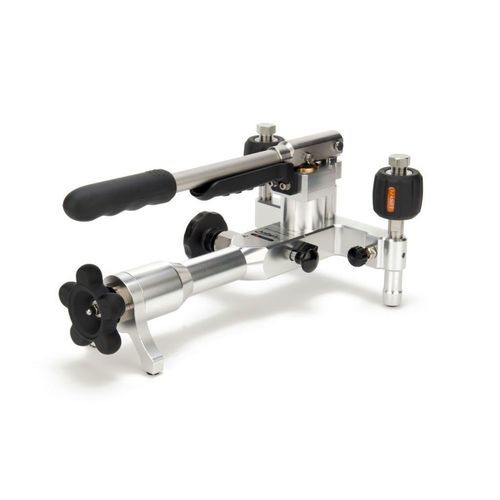

The pneumatic hand pump ADDITEL ADT 917 is designed to generate and control pressure from -0.95 bar (vacuum) up to 70 bar (-14 to 1000 psi). The fine adjustment screw enables pressure setting with 0.1 mbar resolution. It is suited for high-pressure pneumatic applications and on-site or laboratory calibration of pressure transmitters and gauges.

Main features

• Fine pressure adjustment to 0.1 mbar
• Pressure generation and control from -0.95 bar (vacuum) to 70 bar (-14 to 1000 psi)
• Shut-off valve for high stability and reduced maintenance
• Two hand-tight connection ports for connect/disconnect without PTFE tape or wrenches
• Designed for high-pressure pneumatic applications and instrument calibration

Instruments / models and connections

• Instrument reference: ADT 917 pneumatic hand pump, -0.95 to 70 bar
• Pressure ports (available variants): N: 1/4 NPT male; N2: 1/2 NPT male; B: 1/4 BSP male; M: M20×1.5

Standard accessories included

• O-ring seals: 20 pieces
• User manual

Optional accessories

• ADT102: 1/4 NPT male adapters to various hand-tight female connections (25 pcs)
• ADT103: 1/4 NPT male adapters to various female connections (1/4 BSP or M20×1.5) hand-tight (10 pcs)
• ADT100-HTK: Test hose kit 1.5 m, 1000 bar, 1/4 NPT male to 1/4 NPT (1/8 NPT, 1/2 NPT, 1/4 BSP or M20×1.5) hand-tight female
• 9904-917: Transport case for ADT 917 and 2 gauges
• ADT917-MK: Maintenance kit for ADT 917 pump

Characteristics / technical specifications

• Media: Air
• Pressure range: -0.95 bar (vacuum) to 70 bar (-14 to 1000 psi)
• Fine adjustment: 0.1 mbar
• Materials: Adapters: stainless steel; Body: stainless steel / aluminum / copper; Seals: Buna-N
• Dimensions: Height: 140 mm; Base: 315 mm × 198 mm
• Mass: 2.6 kg
• Connections (depending on configuration): test instrument port — 1/4 NPT female, 1/4 BSP female or M20×1.5 female; reference connection — 1/4 NPT female, 1/4 BSP female or M20×1.5 female
• Warranty: 1 year
