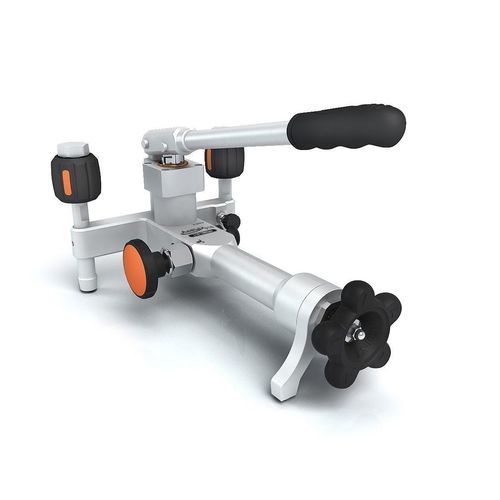

Pneumatic calibration pump ADT 918

manualfor pressure generationfor vacuum

Description The ADDITEL ADT 918 pneumatic pump is a hand-operated pump capable of generating and controlling pressure up to 100 bar (1500 psi). The fine adjustment screw allows pressure trimming to 0.1 mbar. The pump uses a shut-off valve that provides stable pressure and reduces maintenance needs. Two manual-tightening connections allow connecting and disconnecting gauges without Teflon tape or tightening tools. It is suitable for high-pressure pneumatic applications and for the calibration of transmitters and pressure gauges, on-site or in the laboratory.

Materials and elements

• Adapters: stainless steel
• Body: stainless steel / aluminium / copper
• Seals: Buna-N

Dimensions and mass

• Height: 140 mm
• Base: 315 mm x 198 mm
• Mass: 2.6 kg

Connections and ports

• Test instrument connection: 1/4 NPT female, 1/4 BSP female or M20 x 1.5 female
• Reference connection: 1/4 NPT female, 1/4 BSP female or M20 x 1.5 female
• Pressure port (options): N = 1/4 NPT male, N2 = 1/2 NPT male, B = 1/4 BSP male, M = M20 x 1.5

Included accessories (standard)

• O-ring seals: 20 pieces
• User manual

Optional accessories

• ADT102: 1/4 NPT male adapters to various manual-tightening female fittings (25 pcs)
• ADT103: 1/4 NPT male adapters to various manual-tightening female fittings (10 pcs)
• ADT100-HTK: test hose kit 1.5 m, 1000 bar, 1/4 NPT male to multiple manual-tightening female adapters
• 9904-918: carry case for ADT 918 and 2 gauges
• ADT918-MK: maintenance kit for ADT 918 pump

Characteristics / technical specifications

• Media: Air
• Pressure range: from 95% vacuum to 100 bar (-14 to 1500 psi)
• Fine adjustment: 0.1 mbar
• Materials: stainless steel adapters; body in stainless steel/aluminium/copper; seals in Buna-N
• Dimensions: height 140 mm, base 315 x 198 mm
• Mass: 2.6 kg
• Test instrument connections: 1/4 NPT female, 1/4 BSP female or M20 x 1.5 female
• Reference connections: 1/4 NPT female, 1/4 BSP female or M20 x 1.5 female
• Available pressure ports: 1/4 NPT male, 1/2 NPT male, 1/4 BSP male, M20 x 1.5
• Warranty: 1 year
