Multifunction calibrator ADT 760

for mA signalspressurevoltage

Overview

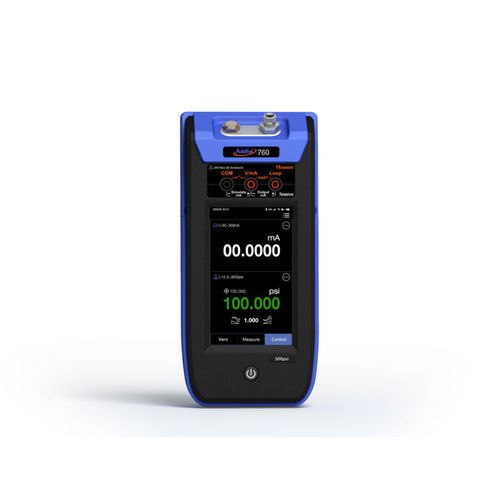

A portable, precision, fully automatic pressure calibrator, compact and lightweight (≈1.8 kg) capable of generating and measuring pressures from 90% vacuum to 20 bar depending on the model. Color touchscreen and internal automatic pump. NIST-traceable calibration certificate supplied as standard.

Functional summary

• Automatic pressure generation and control via integrated pump (up to 20 bar depending on model).
• Control stability of the internal module: <0.005% of full scale.
• Accuracy up to 0.01% of full scale (depending on model/option).
• Interchangeable internal pressure modules to adapt range and accuracy.
• 800×480 TFT color touchscreen for icon-based control and navigation.
• Electrical functions: mA/V measurement and source, 24 VDC loop power (protected up to 30 V).
• Communications: USB, WiFi and Bluetooth; HART instrument support (option).
• Data logging option (DL models): programmable tasks and storage up to 1 million records.

Available models

• ADT760-LLP: designed for very low pressures (module ±30 inH2O / ±75 mbar included).
• ADT760-D: covers -0.86 to 2.5 bar (CP35 sensor included) for differential and gauge measurements.
• ADT760-MA: covers -0.86 to 20 bar (CP300 sensor included), includes internal barometric sensor for absolute and gauge measurements.

Functions and key points

• Test automation (DL models): automatic calibration procedures, task preparation, automatic step control, automatic switch tests with damping.
• Electrical measurement and simulation: mA/V measurement accuracy ±(0.01% reading + 0.005% FS), 0–24 mA source accuracy ±(0.02% reading + 0.01% FS).
• Recording & task management (DL models): up to 250 programmable tasks and result download to PC.
• Leak test: hold pressure to measure leakage losses.
• Pressure circuit protection: upstream special filtering to avoid blockages by dust or residues.
• Removable rechargeable Li-ion battery; runtime ≈10 hours.

Internal modules and compatibility (examples)
The ADT155 module series extends or improves accuracy and ranges: ADT155 (DP025, DP050, DP1, DP2, DP5, DP10, DP20, DP30, DP50, DP150, DP300, DP400, DP800, DP1K) and CP modules (CP2, CP5, CP10, CP15, CP30, CP35, CP50, CP100, CP150, CP200, CP300) with variable accuracies according to module and range.

Accessories (included / optional)

• Typical included accessories: adapter kit (ADT100-760-KIT), 1.5 m hose (ADT100-760-HOSE), mains adapter 110/220 V, Li-ion battery, measurement cables, user manual, NIST certificate.
• Optional accessories: additional modules (ADT160A…), module connection cables, test hose kits (various fittings), pneumatic pressure manifold (ADT128 series), soft/hard cases, filters, stands, Additel software for data management and download.

Main specifications (excerpt)
Specification | 760-LLP | 760-D | 760-MA
Max pressure range | ±30 inH2O (±75 mbar) | -0.86 to 2.5 bar (-12.5 to 35 psi) | -0.86 to 20 bar.g (-12.5 to 300 psi)
Accuracy (full scale) | 0.05% FS | 0.02% FS | 0.02% FS (0.01% option possible)
Stability | <0.005% FS (internal module) for all models
Pressure type | Differential, gauge (LLP & D); Gauge and Absolute (MA)
Resolution | 6 digits
Units available | Pa, hPa, kPa, mPa, bar, mbar, psi, mmHg, inH2O, mtorr, torr, etc.
Pressure connection | Flare fitting (LLP) / G1/8 BSPF (D and MA depending on version)
Display | Color 800×480 TFT touch screen
Battery | Rechargeable Li-ion, runtime ≈10 h, recharge 4 h (external) / 6 h (in case)
Protection | IP54 (dust and water)
Weight / Dimensions | <1.8 kg; 235 × 110 × 70 mm
Certificate | NIST traceable supplied with data
Communications | USB, WiFi, Bluetooth; HART optional (X-DL model)

Technical characteristics / specifications

• Channels: 4 channels total (1 electrical measurement/source, 1 internal pressure generation/measurement channel, 2 external pressure sensor channels).
• Temperature compensation: 5°C to 35°C (extended compensation 0–50°C).
• Temperature coefficient: < ±(0.001% RD + 0.001% FS) /°C outside the 5–35°C range.
• Pump life: >500,000 cycles.
• Environmental specifications: operation 0°C to 50°C, 0–90% RH, altitude <3000 m; storage -20°C to 70°C.
• Vibration & shock: vibration 4g (20–2000 Hz); shock 8g drop test 1 m.
