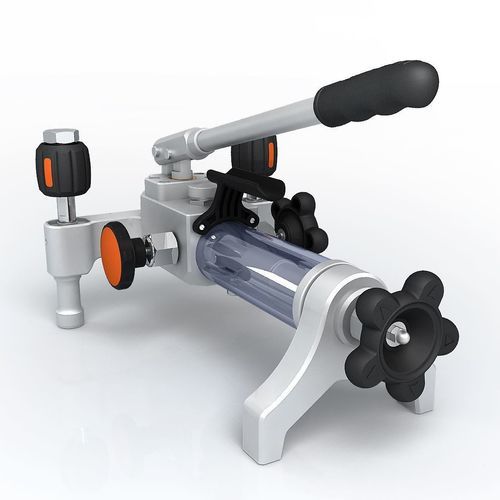

2-piston hydraulic pump ADT 928A

manualhandaluminum

Presentation The ADDITEL ADT 928A hydraulic pump is a manual pump designed to generate and control pressure up to 1000 bar (15,000 psi). It features a double-piston system to pressurize large-volume systems while providing fine pressure adjustment both during increase and decrease.

Main features

• Double-piston system: rapid filling of large volumes and fine pressure adjustment.
• Isolating valve system for the calibration volume: reduces leakage and improves generated pressure stability.
• Two manual-clamp connectors: quick connection of gauges and instruments without tools or PTFE tape.
• Fluid compatibility by model: mineral oils, distilled water (option ADT 928A-W) and Skydrol (option ADT928A-AC).
• Intended for calibration of transmitters and pressure gauges, suitable for field or laboratory use.

Models

• ADT928A — Hydraulic pump (oil), range -0.95 to 1000 bar.
• ADT928A-W — Hydraulic pump (distilled water), range -0.95 to 1000 bar.
• ADT928A-AC — Hydraulic pump (Skydrol), range -0.95 to 1000 bar.

Pressure ports and fittings

• Available ports: N = 1/4 NPT male, N2 = 1/2 NPT male, B = 1/4 BSP male, M = M20×1.5.
• Test instrument connection: 1/4 NPT female, 1/4 BSP female or M20×1.5 female.
• Reference connection: 1/4 NPT female, 1/4 BSP female or M20×1.5 female.

Materials and seals

• Adapters: stainless steel.
• Body: stainless steel / aluminium / copper.
• Seals: Buna-N.

Standard accessories

• 20 O-ring seals.
• User manual.
• 9202: 1 litre of oil (supplied depending on configuration).

Optional accessories

• ADT102: 1/4 NPT male adapters to various manual-clamp female connections (25 pcs).
• ADT103: 1/4 NPT male adapters to various manual-clamp female connections (10 pcs).
• ADT100-HTK: Test hose kit 1.5 m, 1000 bar, 1/4 NPT male to 1/4 NPT/1/8 NPT/1/2 NPT/1/4 BSP/M20×1.5 female manual-clamp ends.
• 9901-928: Transport case for ADT 928 and two gauges.
• ADT928-MK: Maintenance kit for 928 pump.
• 9202: bottle of diethylhexyl sebacate oil (reference oil).

Applications Calibration and verification of pressure transmitters and gauges in workshop or on-site, testing and maintenance of pressure instruments requiring stable and precise generation up to 1000 bar.

Technical specifications

• Pressure range: 0 to 1 000 bar (15 000 psi).
• Operational vacuum range: -0.95 bar to 1 000 bar.
• Mass: 3.9 kg.
• Height: 162 mm.
• Base: 345 mm x 215 mm.
• Piston volume (fine adjustment): 0.9 ml.
• Materials: stainless steel adapters, stainless steel/aluminium/copper body, Buna-N seals.
• Instrument/reference connections: 1/4 NPT female, 1/4 BSP female or M20×1.5 female.
• Warranty: 1 year.
