Non-contact ultrasonic transducer BBDM-18KR50M

ruggedlow-frequencyfor level measurement

Overview
The BBDM-18KR50M is an air-coupled ultrasonic distance transducer with an 18 kHz center frequency and a recommended operating range of 1.8–50 m. It is designed for large-tank level monitoring, industrial distance measurement, collision avoidance, area monitoring and long-range target detection.

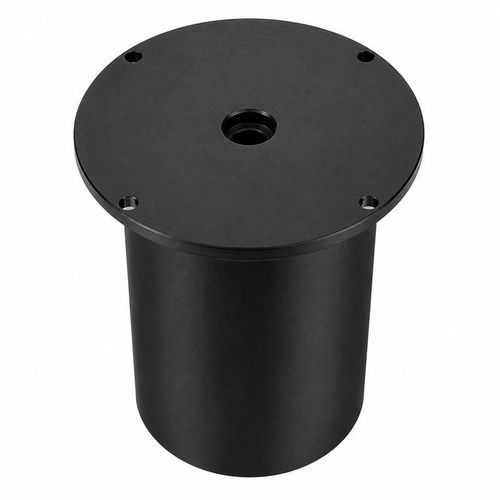

Long-range sensing with a flanged transducer body
Flanged transducer body provides secure mounting and acoustic stability for extended-range measurements in industrial environments, simplifying installation on tank walls or structural supports.

Technical specifications (table)
Model — BBDM-18KR50M
Center frequency — 18 kHz ±5%
Recommended range — 1.8–50 m
Minimum impedance — 1,300 Ω ±20%
Capacitance — 12,000 pF ±20% at 1 kHz
Operating voltage — Peak voltage below 1,500 Vpp
Operating temperature — -40 to +80 °C
Pressure rating — Up to 3 kgf (0.3 MPa)
Beam characteristic — -3 dB half-power angle: 14.9° ±10%
Protection rating — IP68
Weight — 2,500 g ±5% (with 15 m customer-supplied cable)

Evaluating the acoustic field
The 14.9° half-power angle should be compared with target size and available free path. At long distances, internal tank structures, walls or machinery may produce earlier echoes than the target surface. Air temperature gradients and suspended particulates can alter propagation and signal amplitude, requiring calibration or compensation.

System integration parameters
Key integration parameters include target surface properties, operating temperature and pressure. The electrical interface is defined by the stated impedance, capacitance and peak-voltage limit. The standard configuration assumes a 15 m customer-supplied cable; adjust wiring and mounting to match system requirements.

Specifications / technical data

• Model: BBDM-18KR50M
• Center frequency: 18 kHz ±5%
• Recommended range: 1.8–50 m
• Minimum impedance: 1,300 Ω ±20%
• Capacitance: 12,000 pF ±20% at 1 kHz
• Operating voltage: Peak voltage below 1,500 Vpp
• Operating temperature: -40 to +80 °C
• Pressure rating: Up to 3 kgf (0.3 MPa)
• Beam characteristic: -3 dB half-power angle 14.9° ±10%
• Protection rating: IP68
• Weight: 2,500 g ±5% (with 15 m customer-supplied cable)
