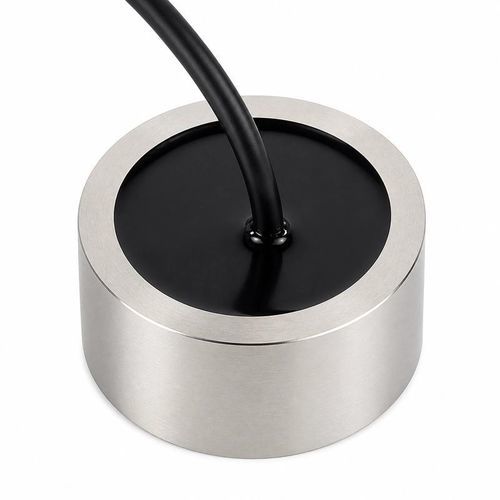

Immersible ultrasonic transducer BBDM-2P5M-LS

high-frequencyfor level measurement

Overview
The BBDM-2P5M-LS is a 2.5 MHz ultrasonic transducer designed for liquid level switch systems in industrial applications. It is intended for high- and low-level alarms, detection of liquid presence or absence, pump protection, and level control. The transducer features a 0.6° half-power beamwidth at -3 dB, IP68 protection, an operating range of -20 to +60 °C, and a pressure rating up to 10 kgf (1 MPa).

Electrical and operating data

• Model — BBDM-2P5M-LS
• Center frequency — 2.5 MHz ±5%
• Minimum impedance — 15 Ω ±20%
• Capacitance — 33,000 pF ±20% at 1 kHz
• Operating voltage — Peak voltage below 120 Vpp
• Operating temperature — -20 to +60 °C
• Pressure rating — Up to 10 kgf (1 MPa)
• Beamwidth — 0.6° half-power angle at -3 dB
• Housing material — Stainless steel
• Protection rating — IP68

Applications

• High- and low-level alarms
• Liquid presence or absence detection
• Pump protection
• Level control in industrial equipment

Technical specifications

• Model: BBDM-2P5M-LS
• Center frequency: 2.5 MHz ±5%
• Minimum impedance: 15 Ω ±20%
• Capacitance: 33,000 pF ±20% at 1 kHz
• Operating voltage: Peak voltage below 120 Vpp
• Operating temperature: -20 to +60 °C
• Pressure rating: Up to 10 kgf (1 MPa)
• Beamwidth: 0.6° half-power angle at -3 dB
• Housing material: Stainless steel
• Protection rating: IP68
