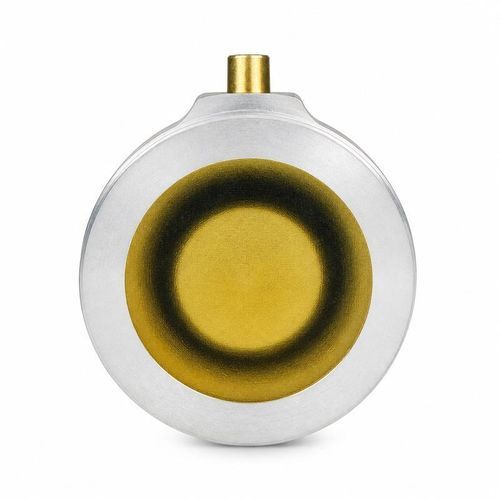

Direct-contact ultrasonic transducer BBDM-5MR1M

high-frequencyfor level measurement

Overview
The BBDM-5MR1M is a 5 MHz ultrasonic transducer designed for external liquid level detection on tanks. Documented detection range is 0.01 to 1 m with a half-power beam angle of 0.8° at -3 dB. Typical applications include fuel and oil tanks, sealed tank monitoring, vehicle and machinery tanks, and through-wall detection of corrosive liquids. The design allows sensing where the liquid is contained behind a tank wall.

Technical data
Parameter — Specification
Model — BBDM-5MR1M
Center frequency — 5 MHz ±5%
Recommended range — 0.01 to 1 m
Minimum impedance — 15 Ω ±20%
Capacitance — 3,400 pF ±20% at 1 kHz
Operating voltage — Peak voltage below 60 Vpp
Operating temperature — -40 to +80 °C
Pressure rating — Up to 10 kgf or 1 MPa
Half-power beam angle at -3 dB — 0.8°
Housing material — 2A12
Mounting — See dimensional drawing
Protection rating — IP68
Weight — 240 g ±5%
Cable length — 5 m + 1 m

Application scope

• Fuel and oil tank level detection
• Sealed tank level monitoring
• Vehicle and machinery tanks
• Through-wall detection of corrosive liquids

Details to define before integration
Specify the operating medium and temperature range, required measuring distance or acoustic path, target size and surface condition, available mounting space and interface dimensions, operating pressure, and protection requirements. Drive and receive electronics, cable arrangement and the connection method also need to be matched to the installation.

Technical specifications

• Model: BBDM-5MR1M
• Center frequency: 5 MHz ±5%
• Recommended range: 0.01–1 m
• Beam angle (-3 dB): 0.8° (half-power)
• Impedance (min): 15 Ω ±20%
• Capacitance: 3,400 pF ±20% at 1 kHz
• Operating voltage: Peak voltage below 60 Vpp
• Operating temperature: -40 to +80 °C
• Pressure rating: Up to 10 kgf / 1 MPa
• Housing material: 2A12
• Protection rating: IP68
• Weight: 240 g ±5%
• Cable length: 5 m + 1 m
