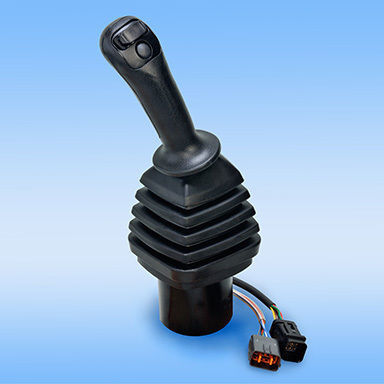

Analog remote control ERU2

joystickmobilecontrol

Overview
ERU2 series is a dual-axis type electric control unit designed for electric control systems, particularly in mobile machinery. It uses the same mechanism as Kawasaki's hydraulic pilot valve found in hydraulic excavators and incorporates a non-contact potentiometer to enhance durability and environmental resistance. Output options: Analog, PWM, and CAN signal.

Features

• Non-contact potentiometer for reduced friction and improved reliability.
• Dual output available to provide fail-safe functionality.
• Selectable operating torque and optional with or without detent.

Applications

• Excavators
• Wheel loaders
• Dozers
• Telehandlers
• Forestry machinery

Specifications (table)
Model | ERU2 (Analog / PWM / CAN) | ERU2D (Analog / PWM / CAN)
Output | Analog / PWM / CAN | Analog / PWM / CAN
Input Voltage | ERU2 Analog: 5V; ERU2 PWM: 5V / 12V; ERU2 CAN: 12V / 24V | ERU2D Analog: 5V; ERU2D PWM: 5V / 12V; ERU2D CAN: 12V / 24V
Detent | ERU2: Without | ERU2D: With
Operation Angle | ERU2: ±23° / ±18° | ERU2D: ±21° / ±9°
Operating Temperature | -40 to 75°C | -40 to 75°C

Characteristics / Technical specifications

• Type: Dual-axis electric remote control unit
• Potentiometer: Non-contact type for reduced friction and improved reliability
• Fail-safe: Dual output available
• Operating torque: Changeable; option for with/without detent
• Output signal options: Analog, PWM, CAN
• Input voltage ranges by output type: Analog 5V; PWM 5V / 12V; CAN 12V / 24V
• Operation angle (varies by model/version): ERU2 ±23° / ±18°; ERU2D ±21° / ±9°
• Operating temperature range: -40 to 75°C
