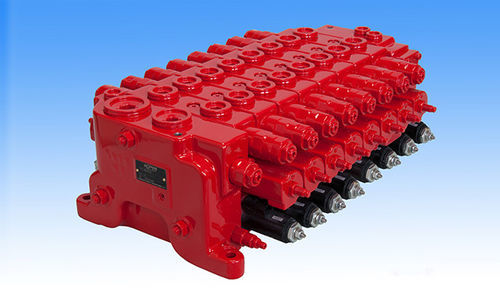

Pressure-compensated hydraulic directional control valve KLSV series

sectionalfor high flow rates

Overview
KLSV series is a load-sensing control valve designed to manage actuators on construction and industrial vehicles. When paired with a variable displacement pump, it enables a closed-center load sensing hydraulic system, offering precise speed control independent of load conditions.

Features

• Flow Sharing (post-compensator) provides balanced and responsive actuator control.
• Low pressure loss reduces hydraulic energy consumption.
• High pressure capability allows for more compact and efficient system designs.

Specifications
Model — KLSV18 | KLSV28
Max. Pressure (MPa) — KLSV18: 40; KLSV28: 35
Max. Flow (L/min) (P Port) — KLSV18: 240; KLSV28: 450
Section (L/min) — KLSV18: 180; KLSV28: 400
*LS margin pressure = 1.5 MPa
Max. Number of Sections — KLSV18: 9; KLSV28: 7

Applications

• Dozers
• Backhoe loaders
• Crawler drills / pile drivers
• Cranes (crawler / rough terrain)
• Truck-mounted cranes
• Concrete pumps
• Asphalt pavers
• Forklift trucks
• Telehandlers
• Manlifts / fire engines
• Trucks
• Tractors
• Combine harvesters
• Sprayers
• Forestry equipment

Load Sensing System
The load-sensing architecture maintains required machine operating speed independently from machine loading conditions, improving controllability and fuel efficiency.

Technical specifications

• Product type: Load-sensing control valve (closed-center)
• Intended for actuator control on construction and industrial vehicles
• Compatible with variable displacement pumps to implement closed-center LS systems
• Flow Sharing (post-compensator) for improved multi-actuator coordination
• Low pressure loss to reduce hydraulic energy consumption
• High pressure rating for compact, efficient hydraulic system layouts
• Model KLSV18 — Max. pressure 40 MPa; Max. flow (P port) 240 L/min; Section 180 L/min; Max sections 9
• Model KLSV28 — Max. pressure 35 MPa; Max. flow (P port) 450 L/min; Section 400 L/min; Max sections 7
• LS margin pressure: 1.5 MPa
