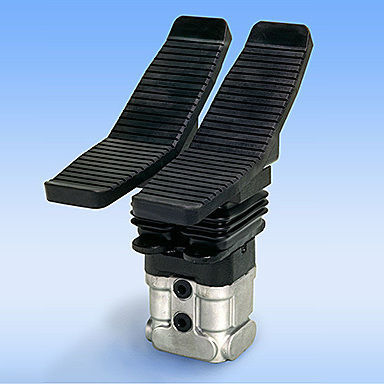

Pressure valve PVD serieshydraulicmanualpressure-reducing
Add to favorites
Compare this product
Characteristics
- Type
- pressure
- Operation
- manual, hydraulic
- Function
- pilot, pressure-reducing
- Media
- for oil
- Applications
- for heavy-duty applications, for the construction sector
- Pressure
Max.: 69 bar
(1,000.8 psi)Min.: 0 bar
(0 psi)- Flow rate
10 l/min
(2.64 us gal/min)
Description
Product Overview
PVD series are pressure-reducing pilot valves with an integrated damping element, designed to control the spools of multiple control valves. The damping part makes them suitable for precise travel control in mobile and industrial hydraulic systems.
Features
Specifications
Model: PVD6P, PVD8P
Max. Inlet Pressure (MPa): 6.9
Output Pressure (MPa): 0–2.9
Rated Flow (L/min): 10
Feature: with damper
Applications
Characteristics / Technical specifications
PVD series are pressure-reducing pilot valves with an integrated damping element, designed to control the spools of multiple control valves. The damping part makes them suitable for precise travel control in mobile and industrial hydraulic systems.
Features
- Adjustable operational torque to meet customer requirements, enabling fine manual control.
- Damping force is velocity-dependent and effective at any lever position for smooth spool actuation.
Specifications
Model: PVD6P, PVD8P
Max. Inlet Pressure (MPa): 6.9
Output Pressure (MPa): 0–2.9
Rated Flow (L/min): 10
Feature: with damper
Applications
- Excavators and construction machinery
- Forestry equipment
Characteristics / Technical specifications
- Type: Pressure-reducing pilot valve with damping element suitable for travel control
- Models: PVD6P, PVD8P
- Maximum inlet pressure: 6.9 MPa
- Output pressure range: 0–2.9 MPa
- Rated flow: 10 L/min
- Feature: Integrated damper; damping force varies with lever velocity
- Operational torque: configurable to customer requirements; low actuation force for precise control
