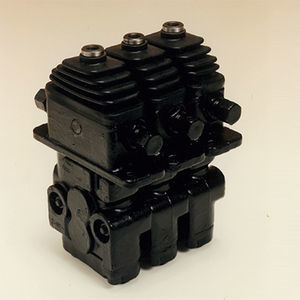

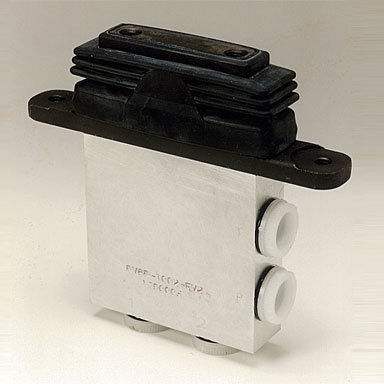

Oil pressure regulator and reducer PV6P

for hydraulic applicationscompactpilote-operated

Product overview
PV6P series is a pressure-reducing type pilot valve designed to control the spools of multiple control valves. Its compact, bankable design lets you configure the number of connected valves as required, making it suitable for mobile hydraulic equipment and option attachments. An optional reduced-operational-torque configuration enables precise, minute control.

Features

• Optional reduced operational torque for customer-specific actuation requirements
• Low actuation force enables fine control of spool movement
• Compact size smaller than conventional pilot valves
• Bankable design — number of banks configurable to system needs

Specifications

• Model: PV6P
• Max. inlet pressure: 6.9 MPa
• Output pressure: 0–2.9 MPa
• Rated flow: 10 L/min
• Design: Pressure-reducing type pilot valve, bankable

Applications

• Excavators
• Wheel loaders
• Forestry equipment

Technical characteristics

• Selectable reduced-torque option to lower operational torque
• Small operational force for accurate, minute control
• Compact footprint for space-constrained installations
• Configurable bank connections for modular valve assemblies
