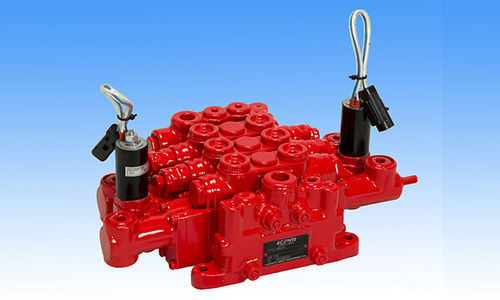

Solenoid-operated hydraulic directional control valve KMC10(L)

pilotproportional

Overview
The KMC series are proportional multiple control valves suitable for various industrial vehicles such as forklift trucks and manlifts. The internal pilot system eliminates the need for an external pilot pressure source. Parallel or tandem circuits are available on request.

Features

• Internal pilot supply eliminates the need for an external pilot pump.
• Bank type configuration allows increasing or decreasing the number of valves to suit actuators.
• KMC10L variant developed with reduced leakage for battery forklifts to improve natural descent and tilt control.

Specifications
Model: KMC10(L)
Max. Pressure (MPa): 24.5
Max. Flow (L/min): 70
Proportional Solenoid – Rated Current (A): 0.7, 1.6
Proportional Solenoid – Coil Resistance (Ω): 17.5, 3.2

Applications

• Cranes (crawler / rough terrain)
• Truck-mounted cranes
• Crushers
• Concrete pumps
• Forklift trucks
• Trucks

Technical characteristics

• Series: KMC series
• Example model: KMC10(L)
• Maximum pressure: 24.5 MPa
• Maximum flow: 70 L/min
• Proportional solenoid rated current options: 0.7 A, 1.6 A
• Coil resistance options: 17.5 Ω, 3.2 Ω
• Internal pilot system: no external pilot pump required
• Bank type configuration: adjustable number of valves for actuator suitability
• KMC10L: reduced leakage variant for battery forklifts (improves natural descent and tilt control)
