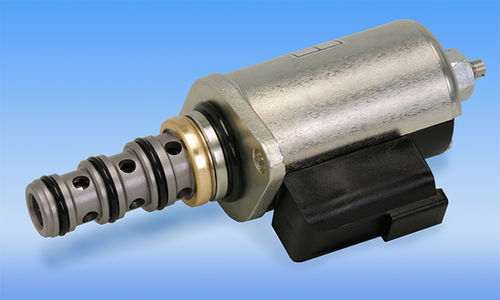

Cartridge valve KWE5K

electrically-actuatedpilot-operatedmonobloc

Overview
The KWE5K electric pilot directional control valve switches pilot pressure flow under electrical command to control hydraulic directional functions. It is designed for compact installation in solenoid blocks and for use in mobile construction machinery.

Key features

• Compact cartridge design requiring minimal installation space.
• Cartridge-type construction for quick attachment and removal, simplifying maintenance.
• Identical cartridge interface for proportional and directional valves, facilitating circuit changes.
• Compatible with multi-solenoid monoblock circuit assemblies.

Applications

• Excavators
• Backhoe loaders
• Track loaders
• Crawler drills / pile drivers
• Forestry equipment

Technical specifications

• Model: KWE5K
• Max. supply pressure: 8.8 MPa
• Max. back pressure (allowable): 1 MPa
• Max. flow: 16 L/min
• Solenoid rating: DC24V / DC12V
