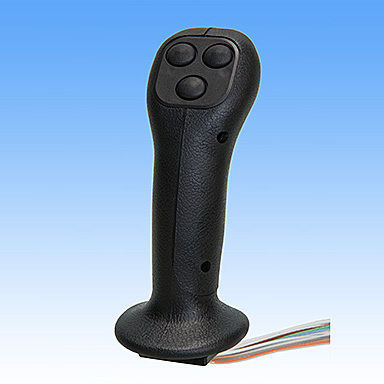

Analog remote control ERUHwith buttonsfor potentiometersswitch
Add to favorites
Compare this product
Characteristics
- Type
- analog
- Control interface
- with buttons
- Product applications
- control, switch, for potentiometers
- Features
- on/off
- Other characteristics
- rugged, multi-function
- Temperature
Min.: -40 °C
(-40 °F)Max.: 75 °C
(167 °F)
Description
Product overview
ERUH series can be attached to electric control unit ERU2 series. Designed for electric control systems, especially mobile applications. ERUH provides multiple switch variants and uses a non-contact potentiometer for electromagnetic-noise resistance and waterproof construction.
Features
Specifications
Model: ERUH (Outputs: Analog / PWM / CAN / Solenoid drive current)
Input voltage: Analog 5V; PWM 5V / 12V; CAN 12V / 24V; Solenoid drive current 12V / 24V
Operation torque: 17～68 mN·m
Operation angle: ±13°
Operating temperature: -40～75°C
ON/OFF switch rating: DC30V / 0.1A or DC30V / 3A
Stroke / Force: 1mm / 4N
Applications
Technical specifications
ERUH series can be attached to electric control unit ERU2 series. Designed for electric control systems, especially mobile applications. ERUH provides multiple switch variants and uses a non-contact potentiometer for electromagnetic-noise resistance and waterproof construction.
Features
- Non-contact potentiometer minimizing mechanical friction and reducing electromagnetic interference.
- Dual (redundant) output available for fail-safe operation.
- Multiple switch variants to adapt to different application controls.
Specifications
Model: ERUH (Outputs: Analog / PWM / CAN / Solenoid drive current)
Input voltage: Analog 5V; PWM 5V / 12V; CAN 12V / 24V; Solenoid drive current 12V / 24V
Operation torque: 17～68 mN·m
Operation angle: ±13°
Operating temperature: -40～75°C
ON/OFF switch rating: DC30V / 0.1A or DC30V / 3A
Stroke / Force: 1mm / 4N
Applications
- Excavators
- Wheel loaders
- Dozers
- Forestry machinery
Technical specifications
- Compatible electric control unit: ERU2 series.
- Output methods: Analog, PWM, CAN signal, solenoid drive current.
- Non-contact potentiometer providing electromagnetic-noise resistance and waterproof construction.
- Dual output available as fail-safe.
- Input voltage per output type: Analog 5V; PWM 5V/12V; CAN 12V/24V; Solenoid drive current 12V/24V.
- Operation torque: 17～68 mN·m.
- Operation angle: ±13°.
- Operating temperature range: -40～75°C.
- ON/OFF switch rating: DC30V / 0.1A and DC30V / 3A.
- Stroke / Force: 1mm / 4N.
