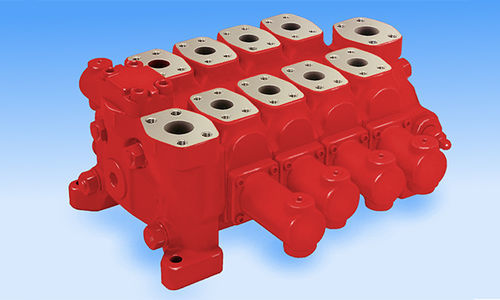

Hydraulic valve MW series

flow controlpressure-controlfor control

Product description
MW(P) series are sectional-type multiple control valves that integrate several directional control sections into a single modular unit. The series incorporates relief valves and load-check valves and employs a pressure compensator to maintain stable, load-independent flow control for hydraulic actuators.

Features

• Three circuit configurations available: parallel, series and tandem to suit diverse hydraulic layouts.
• Pressure compensator provides consistent flow regulation under varying load conditions.
• Bank-type modular design enables adding or removing sections to match actuator count and flow requirements.

Specifications
Model: MW(P) 25 | MW(P) 28
Max. Pressure: 34.3 MPa
Rated Flow: 240 L/min (MW(P) 25) | 350 L/min (MW(P) 28)

Applications

• Dump trucks and heavy-duty vehicles
• Cranes (crawler and rough-terrain)
• Forklift trucks and material handling equipment

Technical details

• Type: Sectional multiple control valve
• Included components: relief valves, load-check valves
• Circuit types: parallel, series, tandem
• Control method: pressure compensator for load-independent flow control
• Modularity: bank-type assembly for scalable number of sections
• Max. operating pressure: 34.3 MPa
• Rated flow: 240 L/min (MW(P) 25); 350 L/min (MW(P) 28)
