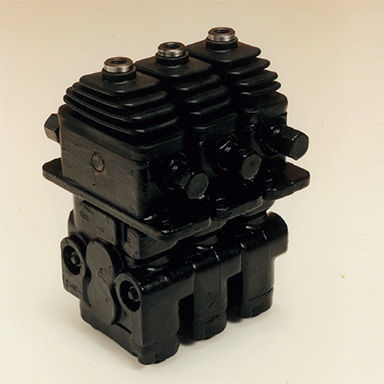

Pilot-operated valve TH40P

actuator controlpilotfor oil

Overview
TH40P series is a banked modular pilot control valve design. The number of individual control sections can be varied to suit system requirements, making the series suitable for industrial mobile equipment with limited mounting space such as crane operator cabins.

Features

• Operational torque can be reduced to meet customer requirements (patent registered), enabling fine, low-force control.
• Reduced pressure drop and quick response (US PAT. No.6,125,886).

Applications

• Wheel loaders
• Cranes (crawler / rough terrain)

Specifications (table)
Model | TH40P | TH40PS
Max. Inlet Pressure (MPa) | 9.8 | 9.8
Output Pressure (MPa) | 0–2.9 | 0–2.9
Rated Flow (L/min) | 20 | 20

Technical specifications

• Model: TH40P, TH40PS
• Max. Inlet Pressure: 9.8 MPa
• Output Pressure: 0–2.9 MPa
• Rated Flow: 20 L/min
