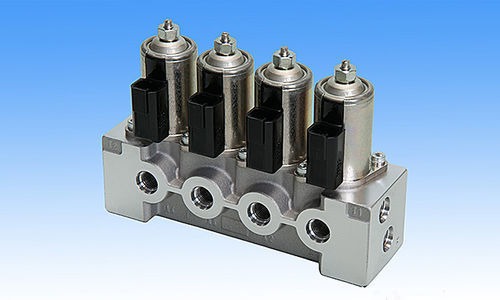

Cartridge valve KWE5 series

electrically-actuatedflow controlsteel

Overview
KWE5A/G series are electric pilot control valves designed to control pilot circuits in construction machinery and industrial vehicles operated outdoors. KWE5A models use an aluminum casing; KWE5G models use a steel casing. Typical configurations include 1 to 4 cartridge valves; other arrangements are available on request.

Features

• Easy wiring: cartridge-type solenoids accept a plug-in connector for single-action electrical connection.
• Compact installation: multiple valve block housings for cartridge solenoid valves accommodate different installation constraints.
• Simplified piping: many valve block housings provide a single P-port and a single T-port.
• Carry-over port: optional carry-over port supplies hydraulic power to additional circuits.

Specifications (table)
Model: KWE5A (aluminum casing) / KWE5G (steel casing)
Max. Pressure (Port P): KWE5A 7 MPa; KWE5G 8.8 MPa
Max. Pressure (Port A — Proportional reducing valve): selectable 2 / 3 / 4 MPa
Max. Pressure (Port A — Directional valve): KWE5A 7 MPa; KWE5G 8.8 MPa
Max. Pressure (Port T): 1 MPa
Max. Flow: proportional reducing valve 10 L/min; directional valve 16 L/min
Solenoid rating — Proportional reducing valve: 0–0.7 A (DC24V) or 0–1.6 A (DC12V)
Solenoid rating — Directional valve: DC24V or DC12V

Applications

• Excavators
• Wheel loaders
• Backhoe loaders
• Track loaders
• Dump trucks
• Crawler drills / pile drivers
• Cranes (crawler / rough terrain)
• Truck-mounted cranes
• Asphalt pavers
• Telehandlers
• Combine harvesters
• Sprayers
• Forestry equipment

Technical characteristics

• Product family: KWE5 series (models: KWE5A, KWE5G)
• Casing material: KWE5A — aluminum; KWE5G — steel
• Cartridge valve arrangement: commonly 1 to 4 cartridges; other arrangements possible
• Ports: P, A, T (many housings provide a single P-port and a single T-port)
• Maximum pressure (Port P): KWE5A 7 MPa; KWE5G 8.8 MPa
• Maximum pressure (Port A — directional): KWE5A 7 MPa; KWE5G 8.8 MPa
• Maximum pressure (Port A — proportional reducing): selectable 2 / 3 / 4 MPa
• Maximum pressure (Port T): 1 MPa
• Maximum flow: proportional reducing valve 10 L/min; directional valve 16 L/min
• Solenoid ratings: proportional reducing valve 0–0.7 A (DC24V) or 0–1.6 A (DC12V); directional valve available in DC24V and DC12V
