Analog remote control ERUSjoystickfor construction equipmentfor cranes
Add to favorites
Compare this product
Characteristics
- Type
- analog
- Control interface
- joystick
- Product applications
- for cranes, for construction equipment
- Protection level
- rugged
- Other characteristics
- safety, rugged, multifunction
- Temperature
Max.: 75 °C
(167 °F)Min.: -40 °C
(-40 °F)
Description
Overview

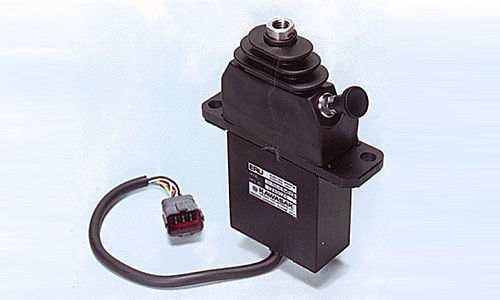

ERUS is an electric single-axis remote control unit designed for mobile equipment control systems. Optional neutral lock or detent mechanisms are available. The unit uses a non-contact potentiometer for reduced wear and offers electromagnetic noise-resistant and waterproof construction. Three output formats are supported: analog, PWM and CAN.
Features
Specifications
Model: ERUS series
Output: Analog / PWM / CAN
Input Voltage: Analog: 5V; PWM: 5V / 12V; CAN: 12V / 24V
Operation Torque: 0.7～1.9Nm
Operation Angle: ±11° / ±23°
Operating Temperature Limit: -40～75°C
Applications
Technical specifications
ERUS is an electric single-axis remote control unit designed for mobile equipment control systems. Optional neutral lock or detent mechanisms are available. The unit uses a non-contact potentiometer for reduced wear and offers electromagnetic noise-resistant and waterproof construction. Three output formats are supported: analog, PWM and CAN.
Features
- Non-contact potentiometer for high reliability and reduced friction
- Dual output option for fail-safe operation
- Optional neutral lock or detent mechanism
- Electromagnetic noise-proof and waterproof construction suitable for mobile applications
Specifications
Model: ERUS series
Output: Analog / PWM / CAN
Input Voltage: Analog: 5V; PWM: 5V / 12V; CAN: 12V / 24V
Operation Torque: 0.7～1.9Nm
Operation Angle: ±11° / ±23°
Operating Temperature Limit: -40～75°C
Applications
- Wheel loaders
- Cranes (crawler / rough terrain)
Technical specifications
- Model: ERUS series
- Output types: Analog, PWM, CAN
- Input voltage: Analog 5V; PWM 5V/12V; CAN 12V/24V
- Operation torque: 0.7～1.9Nm
- Operation angle options: ±11° / ±23°
- Operating temperature range: -40～75°C
- Non-contact potentiometer for reduced wear
- Electromagnetic noise-proof construction
- Waterproof construction
- Optional neutral lock or detent mechanism
- Dual output available for fail-safe
