Positioning control unit ERUP series

networkfor pilotingECU

Overview

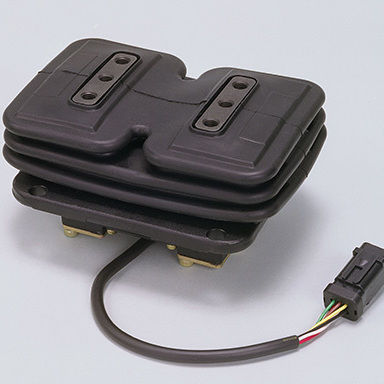

The ERUP series is a pedal-type electric control unit engineered for mobile equipment control. Available in single-pedal (without damper) and double-pedal (with damper) configurations. The unit uses a non-contact potentiometer and features electromagnetic noise-proof and water-proof construction. Output options include analog, PWM and CAN.

Features

• Non-contact potentiometer to reduce friction and improve long-term reliability.
• Dual-output option available for fail-safe implementation.
• Selectable single or double pedal configuration; double pedal includes damper.

Specifications
Models: ERUP1 (Analog / PWM / CAN) | ERUP2 (Analog / PWM / CAN)
Output: ERUP1 - Analog, PWM, CAN; ERUP2 - Analog, PWM, CAN
Input voltage: Analog: 5V; PWM: 5V / 12V; CAN: 12V / 24V
Operation torque: ERUP1 4.9–8.83 Nm; ERUP2 6.5–15.3 Nm
Operation angle: ±12.4° (ERUP1, ERUP2)
Damper: ERUP1 - Without; ERUP2 - With
Operating temperature range: -40 to 75°C
Main use: ERUP1 - Optional attachment controls; ERUP2 - Travel control

Applications

• Excavators
• Forestry machinery

Technical characteristics

• Product type: Pedal-type electric control unit for mobile applications
• Variants: Single pedal (no damper) and double pedal (with damper)
• Output methods: Analog, PWM, CAN
• Non-contact potentiometer for reduced friction and extended service life
• Fail-safe: dual output available
• Construction: Electromagnetic noise-proof and water-proof
• Input voltage by output type: Analog 5V; PWM 5V / 12V; CAN 12V / 24V
• Operation torque: ERUP1 4.9–8.83 Nm; ERUP2 6.5–15.3 Nm
• Operation angle: ±12.4°
• Operating temperature: -40 to 75°C
