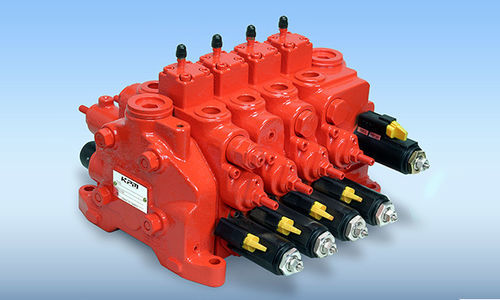

Electrically-operated valve KMP10(C)

manualleverflow control

Overview
KMP series is a bank-type proportional multiple control valve with a pressure compensator operated by electric controls, designed for construction machinery and industrial vehicles. It is primarily intended for fixed-displacement pump systems.

Features

• Integrated pressure compensator for stable control under varying loads.
• Internal pilot supply eliminates the need for an external pilot pump.
• Modular bank configuration allows adding or removing stations to match actuator counts.
• Manual emergency operation available via the attached lever.

Specifications

• Model: KMP10(C)
• Max. pressure: 30.9 MPa
• Max. flow: 80 L/min (P,T ports)
• Max. controlled flow: 70 L/min (A,B ports)
• Proportional solenoid rated current: 0.7 A, 1.6 A
• Coil resistance: 17.5 Ω, 3.2 Ω

Applications

• Dozers
• Truck-mounted cranes
• Crushers
• Concrete pumps
• Asphalt pavers
• Manlifts and fire engines
• Tractors
• Combine harvesters

Technical characteristics / specifications

• Model: KMP10(C)
• Maximum pressure: 30.9 MPa
• Nominal flow: 80 L/min (P,T)
• Controlled flow (A,B): 70 L/min
• Solenoid current options: 0.7 A, 1.6 A
• Coil resistance options: 17.5 Ω, 3.2 Ω
