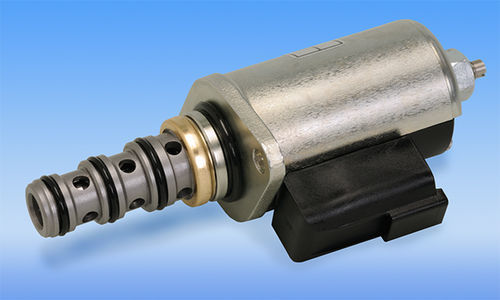

Cartridge valve KDRDE5K

electrically-actuatedelectricpressure-reducing

Product Overview
The proportional pressure-reducing valve (KDRDE5K series) is capable of adjusting pilot pressures respectively in accordance with the electric instructions. This valve, used for the control of the tilting angle of variable displacement pumps or the spool position of control valves, plays an important role in electric control for industrial vehicles.

Features

• Requiring only reduced space for the placement.
• Improved maintainability thanks to cartridge type with easy attaching and removing.
• Easy circuit change thanks to the same cartridge hole in the proportional valve and directional valve.
• Applicable to various circuit solenoid blocks with plural solenoid valves monoblocked.

Applications

• Excavators
• Backhoe Loaders
• Track Loaders
• Crawler Drills / Pile Drivers
• Tractors
• Rice-Planting Machines
• Forestry

Specifications
Model: KDRDE5K
Max. Supply Pressure (MPa): 8.8
Max. Back Pressure (Allowable Pressure) (MPa): 1
Max. Flow (L/min): 10
Secondary Pressure (MPa): 2 / 3 / 4
Solenoid Rating: 0～0.7A For DC24V; 0～1.6A For DC12V

Caractéristiques / spécifications techniques

• Model: KDRDE5K
• Max. Supply Pressure: 8.8 MPa
• Max. Back Pressure (Allowable Pressure): 1 MPa
• Max. Flow: 10 L/min
• Secondary Pressure options: 2 MPa, 3 MPa, 4 MPa
• Solenoid Rating: 0–0.7 A (DC24V); 0–1.6 A (DC12V)
