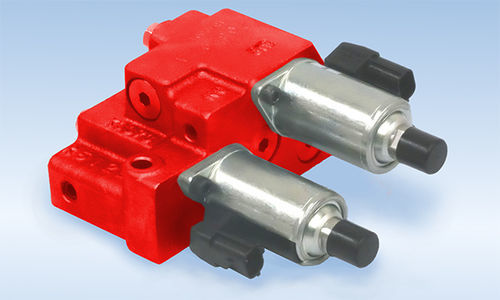

Electrically-actuated valve KTMS6

for controlproportionalsingle-acting

Overview
The KTMS6 is a control valve designed to manage raising and lowering of agricultural implements by driving a single-acting cylinder. It employs an electromagnetic direct-solenoid proportional control to achieve a compact design and precise control of pressure and flow.

Features

• Pressure compensation functions on both raising and lowering controls.
• Very low internal leakage to prevent implements from dropping under their own weight.
• Direct solenoid actuation for a compact assembly.

Specifications
Model: KTMS6
Max. Pressure (MPa): 20.6
Max. Flow (L/min): 20
Leakage (cm3/min): 1.5 at 9.8 MPa
Mass (kg): 3.5

Applications

• Tractors
• Rice-planting machines

Characteristics / Technical specifications

• Model: KTMS6
• Max. Pressure: 20.6 MPa
• Max. Flow: 20 L/min
• Leakage: 1.5 cm3/min at 9.8 MPa
• Mass: 3.5 kg
• Pressure compensation functions for both raising and lowering controls
• Very low leakage to prevent implements from falling under their own weight
• Electromagnetic direct solenoid operated proportional control for compact design
