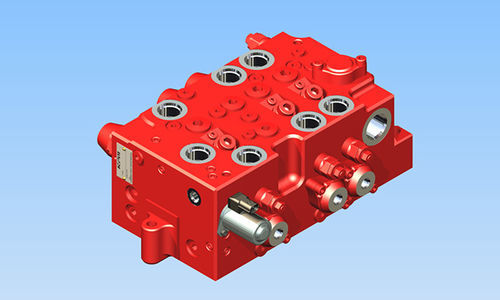

Hydraulic valve KLR18

flow controlmachinefor heavy-duty applications

Overview
The KLR series is a load sensing valve optimized for compact track loaders (CTL) and skid-steer loaders. It supports a closed-center load sensing system compatible with variable displacement pumps, enabling efficient hydraulic distribution under varying load conditions.

Features

• Optimized design for CTL (compact track loader) and SST (skid-steer loader).
• Superior control with flow sharing via post-compensator.
• Includes bucket self-leveling, arm float and auxiliary section options.

Specifications
Model: KLR18
Max. Pressure (MPa): 27
Max. Flow (L/min) – P Port: 180
Max. Flow (L/min) – Section: 150
*LS margin pressure = 1.5 MPa
Max. Number of Sections: 3 (Arm, Bucket, Auxiliary)

Applications

• Track loaders

Load Sensing System
The closed-center load sensing design allows the machine to maintain required operating speed independently from machine loading conditions, improving responsiveness and efficiency.

Technical specifications

• Series: KLR series
• Model: KLR18
• Type: Load Sensing Valve (closed-center load sensing system compatible with variable displacement pump)
• Max. Pressure: 27 MPa
• Max. Flow (P Port): 180 L/min
• Max. Flow (Section): 150 L/min
• LS margin pressure: 1.5 MPa
• Max. Number of Sections: 3 (Arm, Bucket, Auxiliary)
