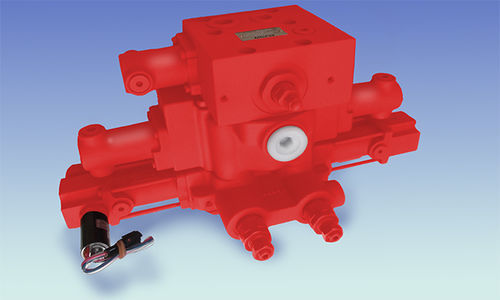

Motion control valve KSC19

for controlheavy-dutyhigh-pressure

Overview
KSC series control valves are designed for swing control of crawler cranes, providing precise damping and torque management to reduce load swing during operation.

Features

• Function to reduce load swing when the swing unit stops.
• Acceleration and deceleration torque adjustable via relief valves with integrated pressure switches.
• High-pressure rating suitable for heavy-duty crane applications.

Specifications
Model: KSC19
Max. Pressure (MPa): 30.9
Rated Flow (L/min): 200

Applications

• Cranes (Crawler / Rough Terrain)

Technical specifications

• Series: KSC series
• Model shown: KSC19
• Maximum pressure: 30.9 MPa
• Rated flow: 200 L/min
• Function: Swing control for crawler cranes; reduces swing when swing unit stops
• Torque control: Acceleration and reduction torque controlled by relief valves with pressure switch function
