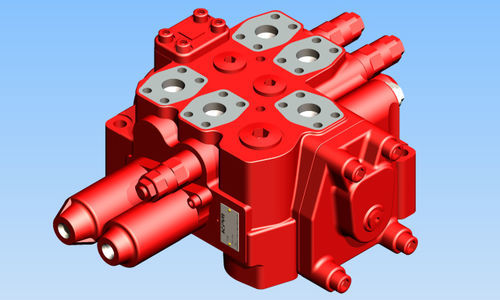

Float valve KML series

flow controlfor controlmodular

Description
KML series is a multiple control valve designed to enable smooth single and combined operations of the arm and bucket on wheel loaders. It provides prioritized flow distribution for attachments, bucket and arm, and supports a floating function for the arm to improve implement handling.

Features

• Optional valves can be added for attachments.
• Multi-tandem valve that prioritizes flow in the following order: Option → Bucket → Arm.
• Arm control with floating function for precise handling.

Specifications (table)
Model | KML22 | KML28 | KML35
Max. Pressure (MPa) | 25 | 25 | 25
Max. Flow (L/min) | 200 | 315 | 600

Applications

• Wheel loaders

Technical specifications

• Model: KML22, KML28, KML35
• Max. Pressure: 25 MPa (all models)
• Max. Flow: 200 L/min (KML22), 315 L/min (KML28), 600 L/min (KML35)
• Valve type: Multi-tandem control valve with priority sequence Option → Bucket → Arm
• Arm control: Floating function
• Attachments: Optional valves available
