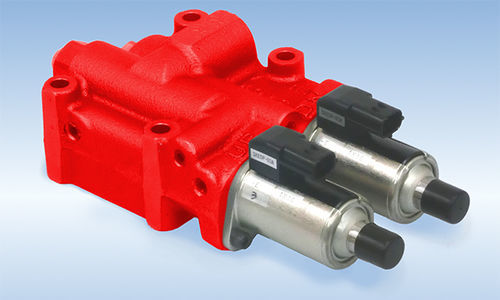

Electro-hydraulic valve KTEM series

pilot-operatedregulatingpilot

Product overview
KTEM series is a control valve for managing the raising and lowering of agricultural implements by driving a single-acting cylinder. Proportional speed control based on input current enables precise adjustment of lift and descent speeds.

Features

• The internal pilot supply enables lowering operation even when the engine is stopped.
• Very low leakage prevents the implement from falling under its own weight.
• High resistance to contamination improves reliability in field conditions.
• Available in multiple flow ratings to match different implement sizes.

Specifications
Model | KTEM8/20 | KTEM8/30 | KTEM8/70
Max. pressure (MPa): 20.6
Rated flow (L/min): 20 | 30 | 70
Leakage (cm3/min): 1.5 at 9.8 MPa
Mass (kg): 3.8

Applications

• Tractors
• Rice-planting machines

Technical specifications

• Series / model names: KTEM series (KTEM8/20, KTEM8/30, KTEM8/70)
• Function: Control valve for raising and lowering agricultural implements; drives single-acting cylinder; proportional speed control by input current
• Internal pilot supply: Enables lowering when engine is stopped
• Max. pressure: 20.6 MPa
• Rated flow: 20 L/min (KTEM8/20), 30 L/min (KTEM8/30), 70 L/min (KTEM8/70)
• Leakage: 1.5 cm3/min at 9.8 MPa
• Mass: 3.8 kg
• Design attribute: Very low leakage and high contamination resistance
