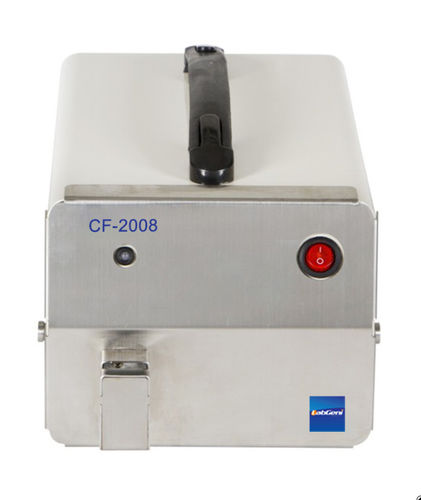

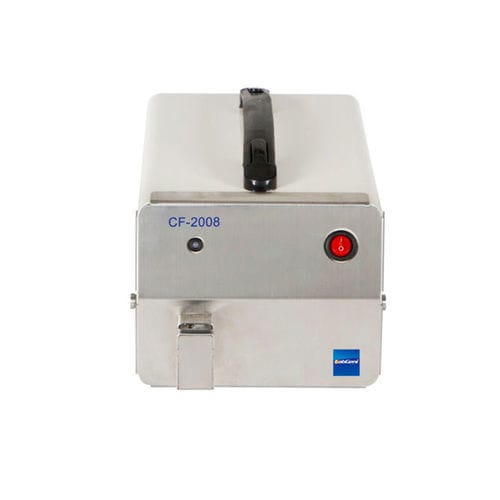

Semi-automatic sealer CF-TS2008

bagfor medical devicestube

Overview
The table type Blood Bag Tube Sealer is a compact equipment to seal blood bag tubing by a radio frequency sealing system. Sealing can be achieved in less than 2 seconds per tube by simple operation. Sealed tube can be easily separated by pulling the sealing section from both sides. The bench-top sealer is designed for consistent high-quality sealing, reliable performance after repeated use, safety features and ease of operation. The unit incorporates a radio frequency sealing system.

Features

• Controlled by single chip; voltage can be adjusted automatically
• No haemolysis; uses quality electronic components to ensure reliable performance
• Intended for use in blood banks, hospitals, blood-collecting vehicles and similar settings
• Automatic heat sealing that creates a tight seal; sealed tube can be separated by pulling the sealed section
• Seals blood bag tubing up to 6 mm diameter
• Automatic start-up upon insertion of tubing
• Seals within 0.5–2 seconds (depending on tubing)

Technical parameters
Model No.: CF-TS2008
Sealing time: 0.5~2 sec. (depends on the tubing)
Power Voltage: 220V / 110V
Power Frequency: 50 Hz / 60 Hz
Size of sealing tube: Diameter 3~6 mm
Lifespan of the electronic tube: About 1000 hours
Net Weight: 7.6 kg
Dimension (D×W×H): 340 × 180 × 150 (mm)

Technical specifications

• Model: CF-TS2008
• Sealing time: 0.5–2 s (depends on the tubing)
• Voltage: 220V / 110V
• Frequency: 50 Hz / 60 Hz
• Sealable tube diameter: 3–6 mm
• Electronic tube lifespan: approx. 1000 hours
• Net weight: 7.6 kg
• Dimensions: 340 × 180 × 150 mm
