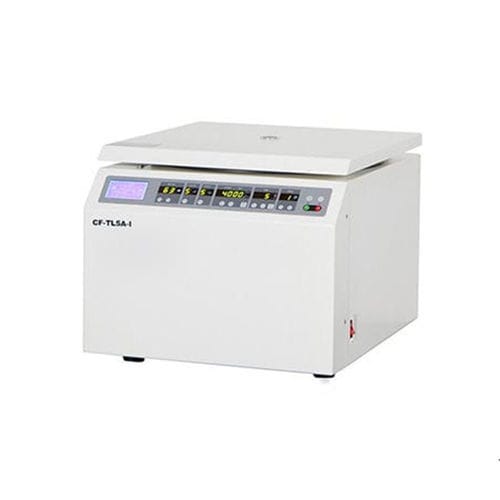

Microplate centrifuge CF-TL5A-I

multi-purposelaboratorybenchtop

Description
Table-top low-speed centrifuge CF-TL5A-I designed for clinical and laboratory sample processing. User-configurable operating parameters (speed, time, accel/decel modes) enable tailored centrifugation for blood, biological samples and general lab workflows.

Key features

• 1. Advanced control and separation
  • Selectable acceleration/deceleration modes (10 options) and user-defined parameters to optimize separation.
  • Short-run function for rapid tests and diversified protocols.
  • SCT speed control for stable RPM/RCF performance.
  • SBT soft-brake control to minimise sample disturbance and maximise specimen recovery.
• 2. Safety and ease of use
  • Automatic rotor identification — no manual rotor code selection required.
  • Protections include overspeed, door interlock and unbalance detection.
  • Steel exterior, stainless-steel chamber and protective sleeve for durable laboratory use.
  • Compatible with aerosol-tight rotors for handling biohazardous samples.
• 3. User interface and programmability
  • LCD/LED multi-screen display showing program, accel/decel mode, RPM/RCF, time and temperature for straightforward setup.
  • Microprocessor control with automatic data save; start by setting RCF directly.
  • Up to 20 user-programmable memory slots for repeated protocols.
• 4. Components and reliability
  • Brushless motor with high torque and SKF high-speed bearings for long service life.
  • Vibration damping with aerospace-grade rubber and duralumin alloy components.

Technical parameters
Model: CF-TL5A-I
Max speed: 5500 r/min
Max RCF: 5310×g
Max capacity: 3000 ml
Speed accuracy: ±20 r/min
Time range: 1–999 min
Power supply: AC 220V 50Hz 15A
Noise: ≤65 dB
Dimension: 540 × 460 × 390 mm
Weight: 54 kg

Rotor summary

• Swing rotor — 4×50/100 ml; max speed 5500 r/min; max RCF 5310×g; tube Ø 38×124 mm
• Swing rotor — 4×500 ml (adapter 12×50 ml / 8×100 ml); max speed 4000 r/min; max RCF 3580×g; tube Ø 80×140 mm
• Swing rotor — 4×250 ml (adapter 8×50 ml / 32×10 ml); max speed 4000 r/min; max RCF 3500×g; tube Ø 64×113 mm
• Swing rotor — 4×750 ml; max speed 4000 r/min; max RCF 3580×g (standard)
• Swing rotor — 32×10/15 ml; max speed 4000 r/min; max RCF 2810×g; tube Ø 16×85–118 mm
• Swing rotor — 8×50 ml; max speed 4000 r/min; max RCF 2810×g; tube Ø 28×105–115 mm
• Swing rotor — 48×5 ml; max speed 4000 r/min; max RCF 2800×g; tube Ø 14×54 mm
• Swing rotor — 148×7 ml; max speed 4000 r/min; max RCF 3080×g; tube Ø 13×78 mm
• Swing rotor — 120×7 ml (blood tube); max speed 4000 r/min; max RCF 3080×g; compatible with standard blood tube dimensions
• Microplate rotor — 2×2×96; max speed 4000 r/min; max RCF 2300×g; for standard microplate formats

Notes

• Automatic rotor recognition and support for multiple rotor/adaptor configurations (see rotor summary).
• Aerosol-tight rotor options available for processing infectious or hazardous samples.

Technical specifications

• Model: CF-TL5A-I
• Max speed: 5500 r/min
• Max RCF: 5310×g
• Max capacity: 3000 ml
• Speed accuracy: ±20 r/min
• Time range: 1–999 min
• Power supply: AC 220V 50Hz 15A
• Noise level: ≤65 dB
• Overall dimensions: 540 × 460 × 390 mm
• Net weight: 54 kg
• Control & safety: microprocessor control, LCD/LED display, 20 programmable memories, overspeed/door/unbalance protection, automatic rotor ID
• Drive & materials: brushless motor, SKF high-speed bearings, aerospace-grade damping, duralumin alloy rotors
• Rotor options: multiple swing and microplate rotors for various tube sizes and capacities
