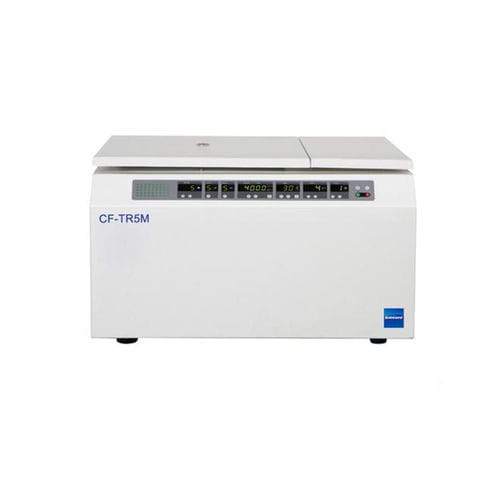

Laboratory centrifuge CF-TLR5M

benchtoprefrigerateddigital display

Short description
CF-TLR5M / CF-TR5M is a table-type refrigerated centrifuge designed for large-volume, low-speed applications. It reaches up to 5000 r/min with a maximum RCF of 4390 × g and supports up to 1000 ml total capacity. Microprocessor control, touch-panel operation and LED display simplify operation and data handling.

Features

• Microprocessor control with touch-panel operation and LED display; operating data can be saved automatically and RCF can be set directly.
• Brushless inverter motor with high torque and European high-speed bearings for smooth, maintenance-free operation.
• Durable steel exterior with stainless-steel centrifugal chamber and multistage damping system to minimize noise and vibration.
• Environmentally friendly, freon-free compressor (European-made) with pre-cooling design for fast, efficient temperature stabilization.
• Comprehensive safety protections: overspeed, over-temperature, door interlock and imbalance protection; rotors suitable for sterilization by high temperature and pressure.
• Compatible with a wide range of adapters (5 ml, 7 ml, 10 ml, 15 ml, 30 ml, 50 ml, etc.) to accommodate various sample formats.

Technical parameters (table)

• Model: CF-TLR5M / CF-TR5M
• Max speed: 5000 r/min
• Max RCF: 4390 × g
• Max capacity: 1000 ml
• Speed accuracy: ±50 r/min
• Temperature range: -20°C to +40°C; accuracy ±1°C
• Time range: 0–99 min
• Power supply: AC 220V 50Hz / AC110V 60Hz, 18A
• Noise level: ≤65 dB
• Dimensions (W×D×H): 640 × 680 × 380 mm
• Net weight: 95 kg

Rotor (summary)

• Swing rotor No.63 — 4×50/100 ml, max speed 5000 r/min, max RCF 4390 × g, tube Ø38×124 mm.
• Swing rotor No.70 — 4×250 ml (adapters: 8×50 ml, 32×10 ml), speed up to 4000 r/min, max RCF 3500 × g, tube Ø64×113 mm.
• Rotor No.77 — 32×10/15 ml, 4000 r/min, max RCF 2810 × g, tube Ø16×85-118 mm.
• Rotor No.81 — 8×50/100 ml, 4000 r/min, max RCF 2810 × g, tube Ø38×124 mm.
• Rotor No.82 — 48/40×5 ml, 4000 r/min, max RCF 2800 × g, tube Ø14×54 mm.
• Rotor No.85 — 96×7 ml or 80×7 ml immuno/vacuum blood collection configurations, 4000 r/min, max RCF 2800 × g.

Technical specifications

• Model: CF-TLR5M / CF-TR5M
• Max speed: 5000 r/min
• Max RCF: 4390 × g
• Max capacity: 1000 ml
• Temperature range: -20°C to +40°C; accuracy ±1°C
• Time control: 0–99 min
• Power: AC 220V 50Hz / AC110V 60Hz, 18A
• Noise: ≤65 dB
• Dimensions (W×D×H): 640 × 680 × 380 mm
• Net weight: 95 kg
• Safety: overspeed, over-temperature, door interlock, imbalance protection; rotors sterilizable by high temperature & high pressure
• Compatible adapters: 5 ml, 7 ml, 10 ml, 15 ml, 30 ml, 50 ml and others
