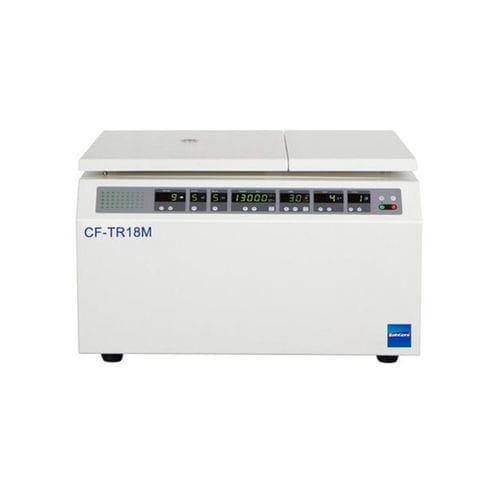

Laboratory centrifuge CF-TR18M

benchtoprefrigeratedhigh-speed

Overview
Tabletop refrigerated centrifuge for laboratory and clinical applications. Steel exterior with stainless-steel rotor chamber and imported critical components for stable operation.

Features

• Microprocessor control with touch panel and LED display; operating parameters and programs can be saved; direct RCF input for user convenience.
• Brushless inverter motor with European high-speed bearings for smooth, low-maintenance operation and reduced particle emission.
• Freon-free refrigeration system ensures fast cooling with low noise and minimal vibration.
• Steel housing and stainless-steel centrifugal chamber enable easy cleaning and corrosion resistance.
• Safety protections include overspeed, over-temperature, door interlock and imbalance detection; rotors can be autoclaved for decontamination.

Technical Parameters

• Model: CF-TR18M
• Max RPM: 18000 r/min
• Max RCF: 21500 x g
• Max Capacity: 300 ml
• Temperature Range: -20°C to +40°C
• Time Range: 0-99 min
• Speed Accuracy: ±50 r/min
• Temperature Accuracy: ±1°C
• Noise: ≤65 dB
• Power supply: AC220V 50Hz 15A
• Dimension: 600 x 580 x 370 mm
• Net Weight: 90 kg

Rotor Configurations

• Angle rotor - 6: 12 × 1.5/2.0 ml | Max Speed 18000 r/min | Max RCF 21500 x g | Tube Φ10×42 mm
• Angle rotor - 9: 24 × 1.5/2.0 ml | Max Speed 15000 r/min | Max RCF 21000 x g | Tube Φ10×42 mm
• Angle rotor - 12: 10 × 5 ml | Max Speed 13000 r/min | Max RCF 11500 x g | Tube Φ14×54 mm
• Angle rotor - 22: 6 × 50 ml | Max Speed 12000 r/min | Max RCF 14800 x g | Tube Φ28×105 mm
• Microplate rotor - 44: 2×48 wells | Max Speed 3000 r/min | Max RCF 1400 x g | Microplate

Technical Specifications

• Model: CF-TR18M
• Max RPM: 18000 r/min
• Max RCF: 21500 x g
• Max Capacity: 300 ml
• Temperature Range: -20°C to +40°C
• Time Range: 0–99 min
• Speed Accuracy: ±50 r/min
• Temperature Accuracy: ±1°C
• Noise: ≤65 dB
• Power supply: AC220V 50Hz 15A
• Dimension: 600 x 580 x 370 mm
• Net Weight: 90 kg
