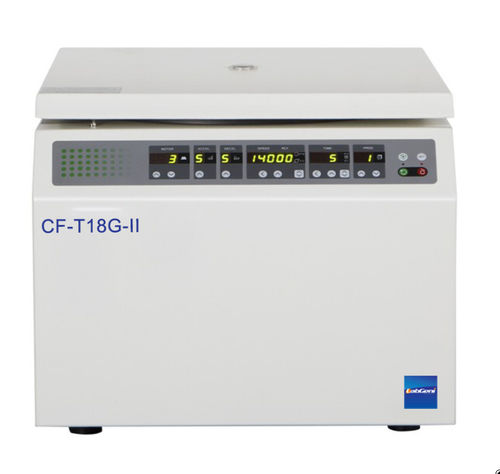

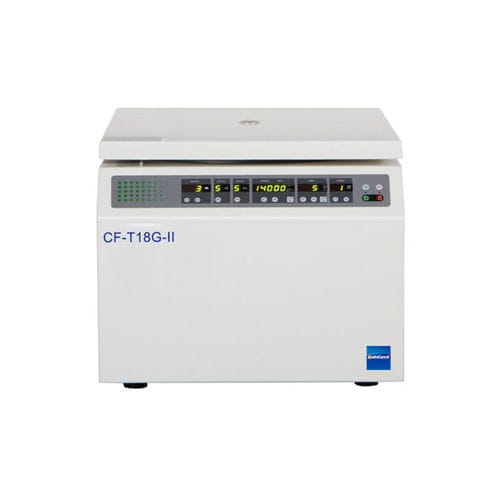

Laboratory centrifuge CF-T18G-II

cleaningbenchtoprefrigerated

Product overview
Refrigerated centrifuge CF-T18G-II is microprocessor-controlled and operated via a touch panel with LED display. Operating data can be saved automatically; RCF value can be set directly for operation, making the unit easy to use.

Features

• Microprocessor control with touch panel and LED display; operating data auto-save; direct RCF input for operation.
• Brushless converter motor with high torque; high-speed bearings from Europe for smooth, maintenance-free operation.
• Multistage damping system for low noise and minimal vibration.
• Steel exterior and stainless-steel centrifugal chamber; imported key components for durability and easy cleaning.
• Rotor identification system; overspeed protection; door interlock; imbalance protection; instrument and rotor lifespan calculation functions to ensure safety.
• Special airflow guide design to limit temperature rise. Proprietary SCT speed control provides fast acceleration and deceleration and high efficiency.
• Adjustable acceleration and deceleration from grade 0 to 9 or direct time setting for accel/decel; stores up to 40 user-defined programs.
• Hold and transient centrifugation modes to support varied protocols.
• Multifunctional: supports both high-speed and low-speed centrifugation with swing rotor options.

Technical parameters
Model | CF-T18G-II
Maximum RPM | 18600 r/min
Maximum RCF | 23950 x g
Maximum Capacity | 2000 ml
Time Range | 0-99h59m59s
Speed Accuracy | ±20 r/min
Noise | ≤65 dB
Power supply | AC220V 50Hz / AC110V 60Hz, 18A
Dimension | 460 x 590 x 420 mm
Net Weight | 48 kg

Rotors (summary)
Header: Rotor Type | Rotor No. | Capacity (ml) | Max Speed (r/min) | Max RCF (xg) | Dimension of tube (mm)
Angle rotor | 6 | 12 x 1.5 ml | 18600 | 23950 | Φ10×42
Angle rotor | 11 | 18 × 0.5 ml | 18600 | 23950 | Φ8×32
Angle rotor | 9 | 24 × 1.5/2.0 ml | 15000 | 21000 | Φ10×42
Angle rotor | 12 | 10 x 5 ml | 16000 | 17420 | Φ14×54
Angle rotor | 16 | 12 x 10 ml | 15000 | 23120 | Φ16×81
Angle rotor | 22 | 6 x 50 ml | 13000 | 17380 | Φ28×105
Angle rotor | 31 | 4 x 100 ml | 10000 | 9690 | Φ38×124
Swing-out rotor | 63 | 4 × 50/100 ml | 5000 | 4390 | Φ38×124
Swing-out rotor | 69 | 4 x 500 ml (adaptor 12x50ml/8x100ml) | 4000 | 3580 | Φ80×140
Swing-out rotor | 70 | 4 x 250 ml (adaptor 8x50ml/36x10ml) | 4000 | 3500 | Φ64×113
Swing-out rotor | 77 | 32 × 10/15 ml | 4000 | 2810 | Φ16×85-118
Swing-out rotor | 81 | 8 × 50/100 ml | 4000 | 2810 | Φ38×124
Swing-out rotor | 82 | 48/40 x 5 ml | 4000 | 2800 | Φ14×54
Swing-out rotor | 84 | 148 x 7 ml | 4000 | 3200 | Immuno tube
Swing-out rotor | 84 | 120 x 7 ml | 4000 | 3200 | Vacuum blood collection tube
Microplate rotor | 44 | 2 × 48 holes | 4000 | 2300 | Microplate

Specifications

• Model: CF-T18G-II
• Maximum speed: 18600 r/min
• Maximum RCF: 23950 x g
• Maximum capacity: 2000 ml
• Time range: 0-99h59m59s
• Speed accuracy: ±20 r/min
• Noise level: ≤65 dB
• Power supply: AC220V 50Hz or AC110V 60Hz, 18A
• Dimensions (W×D×H): 460 × 590 × 420 mm
• Net weight: 48 kg
