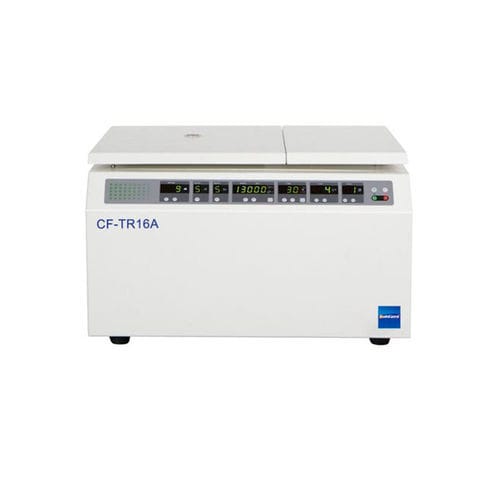

Laboratory centrifuge CF-TR16 series

benchtopfloor-standingrefrigerated

Short description
Refrigerated high-speed tabletop centrifuge for clinical and laboratory sample processing. Microprocessor control with touch panel and LED display; operating data can be saved and RCF can be set directly for procedures.

Key features

• Microprocessor control with touch panel and LED display; data logging and direct RCF input for procedure reproducibility.
• Brushless converter motor to minimise contamination from aerosols/powder; high-speed European bearings for smooth, maintenance‑free operation.
• Freon-free compressor for rapid cooling with reduced noise and vibration.
• Steel exterior with stainless steel centrifugal chamber; key imported components for consistent performance and easy cleaning.
• Safety protections: over-speed, over-temperature, door interlock and unbalance protection; rotors can be disinfected at high temperature and pressure.

Technical specifications

• Product family: CF-TR16 series
• Models: CF-TR16M, CF-TR16A
• Max speed: 16600 r/min
• Max RCF: 19200 x g
• Max capacity: CF-TR16M up to 300 ml; CF-TR16A typical tube configurations shown (e.g., 18 × 0.5 ml)
• Temperature range: -20°C to +40°C
• Timer range: 0–99 min
• Speed accuracy: ±50 r/min
• Temperature accuracy: ±1°C
• Noise level: ≤65 dB
• Power supply: AC 220V, 50Hz, 15A
• Dimensions (W×D×H): 600 × 580 × 370 mm
• Net weight: 90 kg
• Construction: steel body, stainless steel centrifugal chamber
• Controls: touch panel, LED display, microprocessor control, direct RCF set
• Safety features: over-speed, over-temperature, door interlock, unbalance protection; rotor disinfectable at high temperature and pressure

CF-TR16M rotors (selected)

• Angle rotor 6 — 12 × 1.5 ml; Max speed 16000 r/min; Max RCF 17800 x g; Tube Φ10×42 mm
• Angle rotor 11 — 18 × 0.5 ml; Max speed 16000 r/min; Max RCF 17800 x g; Tube Φ8×32 mm
• Angle rotor 9 — 24 × 1.5/2.0 ml; Max speed 13000 r/min; Max RCF 16060 x g; Tube Φ10×42 mm
• Angle rotor 12 — 10 × 5 ml; Max speed 13000 r/min; Max RCF 11500 x g; Tube Φ14×54 mm
• Angle rotor 16 — 12 × 10 ml; Max speed 12000 r/min; Max RCF 14800 x g; Tube Φ16×81 mm
• Angle rotor 18 — 48 × 0.5 ml; Max speed 13000 r/min; Max RCF 14740 x g; Tube Φ8×32 mm
• Angle rotor 22 — 6 × 50 ml; Max speed 11000 r/min; Max RCF 14610 x g; Tube Φ28×105 mm
• Microplate rotor 44 — 2 × 48 wells; Max speed 3000 r/min; Max RCF 1400 x g; Plate format: microplate

CF-TR16A rotors (selected)

• Angle rotor 6 — 12 × 1.5 ml; Max speed 16000 r/min; Max RCF 17800 x g; Tube Φ10×42 mm
• Angle rotor 11 — 18 × 0.5 ml; Max speed 16000 r/min; Max RCF 17800 x g; Tube Φ8×32 mm

Applications

• Clinical laboratories, research laboratories, blood banks and sample preparation workflows requiring refrigerated centrifugation and accurate RCF control.
