Laboratory centrifuge CF-T18G

cleaningbenchtophigh-speed

Product name

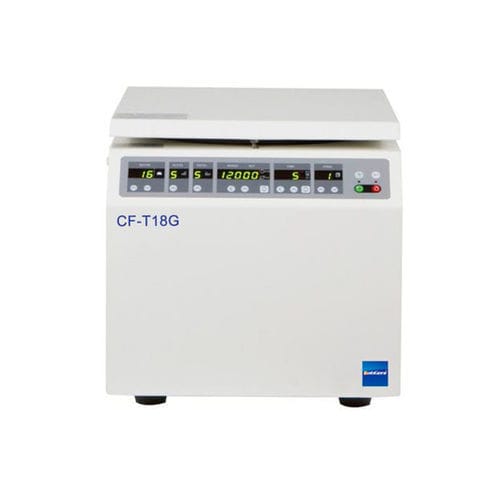

CF-T18G benchtop high-speed centrifuge

Overview
The CF-T18G is a microprocessor-controlled benchtop centrifuge with a touch-panel interface and LED display. Operating parameters can be saved and recalled; RCF can be set directly for precise workflows. The unit integrates a brushless converter motor and multistage damping for smooth, low-vibration operation, and a stainless steel chamber for easy cleaning and sterilization.

Key features

• Microprocessor control with touch panel and LED display; saveable operating programs and direct RCF input.
• Brushless converter motor with high-torque European high-speed bearings for maintenance-free operation.
• Multistage damping system minimizing vibration and noise (≤ 65 dB).
• Steel exterior with stainless-steel centrifugal chamber; critical components imported for durability and cleanability.
• Comprehensive safety: over-speed protection, door interlock, imbalance detection; rotors autoclave-compatible.
• Optimized airflow design reduces chamber temperature rise to protect samples during runs.

Technical Parameter

• Model: CF-T18G
• Max speed: 18000 r/min
• Max RCF: 21500× g
• Max capacity: 300 ml
• Speed accuracy: ±50 r/min
• Time range: 0–99 min
• Power supply: AC 220V 50Hz / AC 110V 60Hz, 18A
• Noise: ≤ 65 dB
• Dimensions (W×D×H): 400 × 350 × 340 mm
• Weight: 25 kg

Rotors

• No. 6 | Angle | 12×1.5 ml | MAX. RPM 18600 | Max RCF 23950 | Suit tube Φ10×42
• No. 11 | Angle | 18×0.5 ml | MAX. RPM 18600 | Max RCF 23950 | Suit tube Φ8×32
• No. 9 | Angle | 24×1.5/2.0 ml | MAX. RPM 15000 | Max RCF 21000 | Suit tube Φ10×42
• No. 12 | Angle | 10×5 ml | MAX. RPM 16000 | Max RCF 17420 | Suit tube Φ14×54
• No. 16 | Angle | 12×10 ml | MAX. RPM 15000 | Max RCF 23120 | Suit tube Φ16×81
• No. 22 | Angle | 6×50 ml | MAX. RPM 13000 | Max RCF 17380 | Suit tube Φ28×105
• No. 31 | Angle | 4×100 ml | MAX. RPM 10000 | Max RCF 9690 | Suit tube Φ38×124
• No. 56 | Angle | 48×1.5 ml | MAX. RPM 13000 | Max RCF 14740 | Suit tube Φ8×32
• No. 52 | Angle | 8×15 ml | MAX. RPM 12000 | Max RCF 16740 | Suit tube Φ16×118
• No. 44 | Swing | 2×48 Holes | MAX. RPM 3000 | Max RCF 1400 | Suit tube Microplate
• No. 63 | Swing | 4×50/100 ml | MAX. RPM 5000 | Max RCF 4390 | Suit tube Φ38×124
• No. 69 | Swing | 4×500 ml | MAX. RPM 4000 | Max RCF 3580 | Suit tube Φ80×140
• Adaptor | Adaptor | 12×50 ml / 8×100 ml | MAX. RPM 4000 | Max RCF 3580
• No. 70 | Swing | 4×250 ml | MAX. RPM 4000 | Max RCF 3500 | Suit tube Φ64×113
• Adaptor | Adaptor | 8×50 ml / 36×10 ml | MAX. RPM 4000 | Max RCF 3500
• No. 77 | Swing | 32×10/15 ml | MAX. RPM 4000 | Max RCF 2810 | Suit tube Φ16×85-118
• No. 81 | Swing | 8×50/100 ml | MAX. RPM 4000 | Max RCF 2810 | Suit tube Φ38×124
• No. 83 | Swing | 48×5/7 ml | MAX. RPM 4000 | Max RCF 3500 | Suit for long/short tube
• No. 75 | Swing | 72×5/7 ml | MAX. RPM 4000 | Max RCF 3500 | Suit for long/short tube
• No. 85 | Swing | 96×5/7 ml | MAX. RPM 4000 | Max RCF 3580 | Suit for long/short tube

Technical specifications

• Control: Microprocessor touch-panel with LED display; program memory and direct RCF setting.
• Drive: Brushless converter motor with European high-speed bearings.
• Vibration & noise: Multistage damping, noise ≤ 65 dB.
• Safety: Over-speed protection, door interlock, imbalance detection; rotors autoclave-compatible.
• Thermal management: Engineered airflow to limit temperature rise in the chamber.
• Power: AC 220V 50Hz or AC 110V 60Hz (18A).
• Footprint & weight: 400 × 350 × 340 mm; 25 kg.
