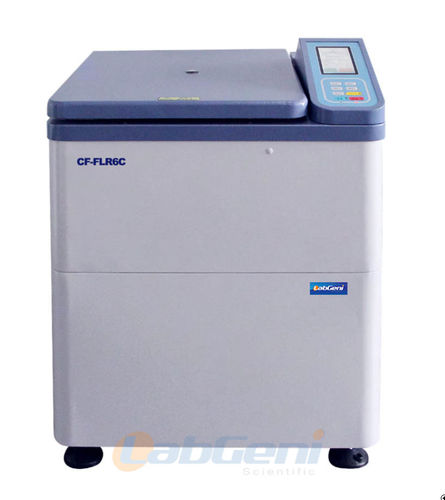

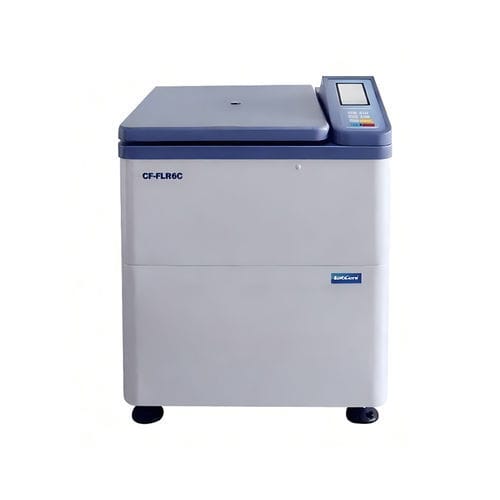

Laboratory centrifuge CF-FLR6C

floor-standingrefrigeratedautomatic

Product overview
Floor-type refrigerated centrifuge CF-FLR6C designed for blood bank and clinical laboratory applications. Microprocessor control with touch panel and key input; large-capacity chamber supporting multiple rotor options for blood bags and tubes. Operation temperature range −20℃ to +40℃, temperature accuracy ±1.0℃.

Key features

• Intelligent control system: Set speed up/down modes; automatic RCF calculation; program group shortcut keys with storage for up to 99 programs; electric door lock with automatic open after run; 10-step linear acceleration/deceleration.
• High-performance drive and display: HD large LCD; parameters editable during run; microcomputer control with AC frequency-conversion brushless motor for rapid, stable speeds; two timing modes (run-time / arrival-speed timing); eco-friendly refrigeration.
• Safety and reliability: Rotor automatic identification; protections for overspeed, overheat and imbalance; automatic lid lock; steel frame with stainless-steel chamber and anti-corrosion treatment.
• Operational convenience: Built-in tool rack; front-panel SOP guide map; quick-lock rotor cover; ergonomic low-height lid with one-press close; low-noise design.

Technical parameters (summary)
Model: CF-FLR6C
Max speed: 6500 rpm
Max RCF: 6680 × g
Power: 3200 W
Noise level: ≤ 65 dB(A)
Max capacity: 6 × 1000 ml
Timer: 1 s – 99 h 59 min 59 s
Net weight: 325 kg
Revolutions/min accuracy: ±10 r/min
Rotor automatic recognition: Yes
Temperature range: -20℃ – 40℃; temperature accuracy ±1.0℃
Voltage: AC 220 ± 22V 50Hz 30A

Rotors specs (summary)

• Angle rotors: 6×250 ml — max 6500 rpm, max RCF 6610×g; 6×300 ml — max 6500 rpm, max RCF 6610×g; 6×500 ml — max 6000 rpm, max RCF 6680×g.
• Swing-out rotors: 6×1000 ml (round bucket) — max 4200 rpm, max RCF 5100×g; 6×1000 ml (square bucket) — max 4200 rpm, max RCF 5100×g.
• Automatic uncap rotor: 168×(2–7 ml) blood collection tubes, automatic uncapping, max 4200 rpm, max RCF 5100×g.

Technical specifications

• Model: CF-FLR6C
• Max speed: 6500 rpm
• Max RCF: 6680 × g
• Max capacity: 6 × 1000 ml
• Power: 3200 W
• Timer range: 1 s to 99 h 59 min 59 s
• Temperature range: -20℃ to +40℃; temperature accuracy ±1.0℃
• Display & control: HD large LCD, microprocessor control, touch panel with key
• Safety: rotor automatic identification, overspeed/overheat/unbalance protections, auto lid lock
• Dimensions (W×D×H): 905 × 755 × 1075 mm
• Net weight: 325 kg
• Voltage: AC 220 ± 22V 50Hz 30A
• Included rotor options: angle rotors (250 ml, 300 ml, 500 ml), swing-out rotors (1000 ml round/square), automatic uncap rotor for blood collection tubes
