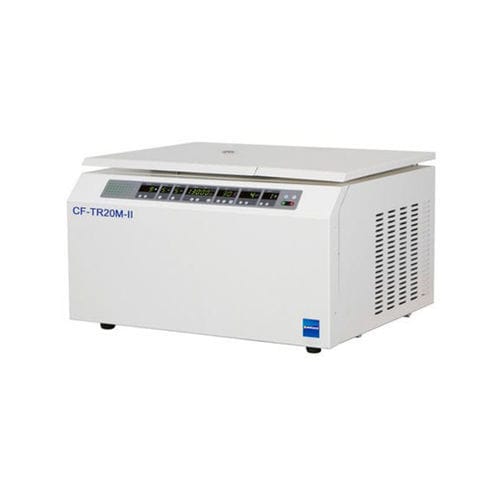

Laboratory centrifuge CF-TLR20M-II

benchtoprefrigeratedhigh-speed

Product Overview
High-speed refrigerated centrifuge for tabletop use. Supports hold-on and transient centrifugation modes to accommodate diverse laboratory protocols.

Features

• Microprocessor control with touch panel, LED and LCD display; operating data auto-saved; RCF value can be set directly for operation.
• Brushless converter motor with high torque; high-speed bearings from Europe for smooth, maintenance-free operation.
• Multistage damping system and Freon-free compressor from Europe for low noise and minimal vibration.
• Steel body with stainless steel centrifugal chamber; key imported components for high quality, durability and easy cleaning.
• Rotor identification system; over-speed protection, door interlock, unbalance protection; instrument and rotor lifespan calculation; rotors can be disinfected at high temperature and high pressure.
• Pre-cooling design for chamber for fast cooling; proprietary SCT speed control for fast acceleration and deceleration and high efficiency.
• Adjustable acceleration/deceleration from grade 0 to 9 or direct time setting; stores up to 40 custom operating programs.
• Support for hold-on and transient centrifuging for diversified centrifugation needs.
• Multifunctional: capable of both high-speed and low-speed centrifugation with large-volume swing rotors.

Technical parameters
Maximum RPM : 21,000 r/min
Maximum RCF : 30,700 x g
Maximum Capacity : 3000 ml
Temperature Range : -20°C – +40°C
Time Range : 0-99h59m59s
Speed Accuracy : ±20 r/min
Temperature Accuracy : ±1°C
Noise : ≤60 dB
Power supply : AC220V 50Hz / AC110V 60Hz 18A
Dimension : 800 x 700 x 400 mm
Net Weight : 110 kg

Specifications

• Max speed: 21,000 r/min
• Max RCF: 30,700 x g
• Capacity: up to 3000 ml (depending on rotor)
• Temperature control range: -20°C to +40°C
• Programmable time up to 99h59m59s
• Low noise operation ≤60 dB
• Power: AC220V 50Hz or AC110V 60Hz (18A)
• Dimensions: 800 x 700 x 400 mm; Net weight: 110 kg
