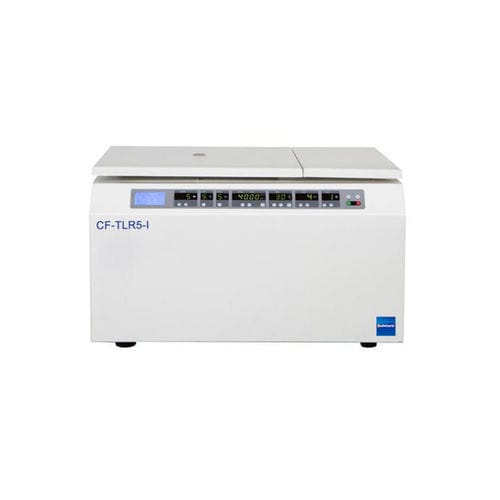

Laboratory centrifuge CF-TLR5-I

benchtoprefrigeratedautomatic

Overview
Table-type refrigerated low-speed centrifuge CF-TLR5-I for laboratory sample separation. Ten selectable acceleration/deceleration modes and direct time setting allow optimization for diverse protocols and sample types.

Features

• Advanced control system for precise separation.
• 10 selectable Accel/Decel modes or direct Accel/Decel time setting to optimize results.
• Short-run function for rapid, varied centrifugation cycles.
• SCT speed control technology for stable and efficient speed regulation.
• SBT soft-brake control to reduce sample disturbance and maximize specimen recovery.
• Automatic rotor identification eliminates manual rotor selection.
• Safety protections: over-temperature, over-speed, door interlock and unbalance detection.
• Construction: steel exterior, stainless-steel chamber and steel protective sleeve.
• Compatible with rotors supporting aerosol-tight lids for handling hazardous samples.
• User interface: LCD/LED multi-screen showing program, Accel/Decel mode, RPM/RCF, time and temperature for intuitive setup.
• Microprocessor control with automatic data save; device can start by RCF input and store up to 40 user-defined programs.
• Durable components: brushless converter motor with high torque, SKF high-speed bearings, freon-free compressor from Europe.
• Vibration damping using aerospace-grade rubber and super duralumin alloy components.

Rotor details (summary)
The product supports multiple interchangeable rotors. Key rotor options and typical capacities are listed below:

• Swing Rotor No.1 | 4×50 ml / 4×100 ml | Max Speed 5500 r/min | Max RCF 5310×g | Tube Φ38×124 mm
• Swing Rotor No.2 | 4×500 ml / 12×50 ml / 8×100 ml | Max Speed 4000 r/min | Max RCF 3580×g | Tube Φ80×140 mm
• Swing Rotor No.3 | 4×250 ml / 8×50 ml / 32×10 ml | Max Speed 4000 r/min | Max RCF 3500×g | Tube Φ64×113 mm
• Swing Rotor No.4 | 72×5 ml | Max Speed 4000 r/min | Max RCF 2830×g | Tube Φ14×54 mm
• Swing Rotor No.5 | 32×10 ml / 32×15 ml | Max Speed 4000 r/min | Max RCF 2810×g | Tube Φ16×85–118 mm
• Swing Rotor No.6 | 16×10 ml / 16×15 ml | Max Speed 4000 r/min | Max RCF 2810×g | Tube Φ16×85–118 mm
• Swing Rotor No.7 | 8×50 ml | Max Speed 4000 r/min | Max RCF 2810×g | Tube Φ28×105–115 mm
• Swing Rotor No.8 | 48×5 ml | Max Speed 4000 r/min | Max RCF 2800×g | Tube Φ14×54 mm
• Swing Rotor No.9 | 148×7 ml | Max Speed 4000 r/min | Max RCF 3080×g | Tube Φ13×78 mm
• Swing Rotor No.10 | 120×5/7 ml | Max Speed 4000 r/min | Max RCF 3080×g | Blood collection tube
• Swing Rotor No.11 | 96×7 ml | Max Speed 4000 r/min | Max RCF 2800×g | Tube Φ13×78 mm
• Swing Rotor No.12 | 80×5/7 ml | Max Speed 4000 r/min | Max RCF 2800×g | Blood collection tube

Characteristics / Technical specifications

• Model: CF-TLR5-I
• Max Speed: 5500 r/min
• Max RCF: 5310×g
• Max Capacity: 3000 ml
• Speed Accuracy: ±20 r/min
• Temperature Range: -20°C to +40°C
• Temperature Accuracy: ±1°C
• Time Range: 1 s to 99 h 59 min 59 s
• Power Supply: AC 220V 50Hz 18A
• Noise: ≤60 dB
• Dimension (W×D×H): 800 × 700 × 400 mm
• Weight: 110 kg
