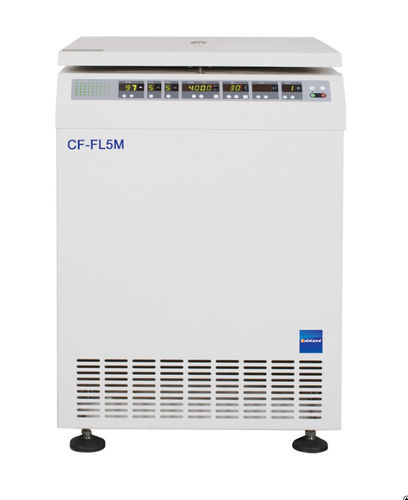

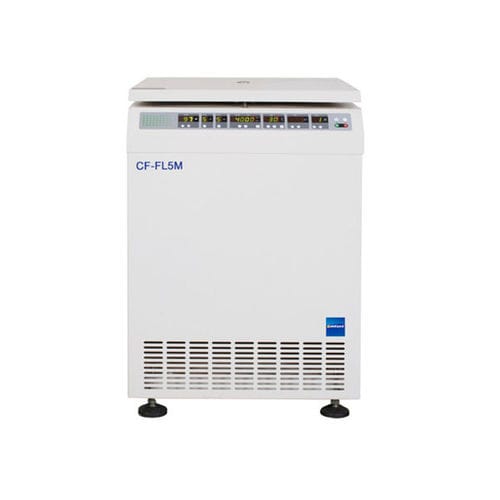

Laboratory centrifuge CF-FL5M

benchtopfloor-standingautomatic

Product Overview
The CF-FL5M is a low-speed, large-capacity laboratory centrifuge with a maximum speed of 5000 r/min and a maximum capacity of 3000 ml. It features microprocessor control with a touch panel and LED display. Operating data can be saved automatically and the RCF value can be entered directly for operation.

Features

• Microprocessor control with touch panel and LED display; automatic saving of operating data; direct RCF input for precise operation.
• Brushless converter motor delivering high torque; European bearings for smooth, low-maintenance operation.
• Multistage damping system to minimise noise and vibration.
• Steel exterior and stainless-steel centrifugal chamber; key imported components for durability and easy cleaning.
• Comprehensive safety protections including overspeed, door interlock and imbalance detection.
• Optimised airflow design to reduce temperature rise in the chamber; proprietary SCT speed control for rapid acceleration and deceleration.
• Compatible with multiple adapters (5ml, 7ml, 10ml, 15ml, 30ml, 50ml and others) to suit diverse sample needs.

Technical Parameters
Model: CF-FL5M
Max Speed: 5000 r/min
Max RCF: 4390×g
Max Capacity: 3000 ml
Speed Accuracy: ±50 r/min
Time Range: 0-99 min
Power Supply: AC 220V 50Hz / AC110V 60Hz 20A
Noise: ≤65 dB
Dimension: 620 × 700 × 1140 (mm)
Weight: 150 kg

Rotor Options
Rotor Type | Number | Capacity | Max Speed (r/min) | Max RCF (×g) | Dimension of tube (mm)
Angle Rotor | No.17 | 12×10ml | 5000 | 3500 | Φ10×42
Swing Rotor | No.91 | 4×50/100ml | 5000 | 4390 | Φ38×124
Swing Rotor | No.92 | 64×15ml | 4000 | 3620 | Φ16×85-118
Swing Rotor | No.93 | 4×500ml | 4000 | 3580 | Φ80×140
Swing Rotor | No.95 | 32×10/15ml | 4000 | 2810 | Φ16×85-118
Swing Rotor | No.84 | 120/148×7ml (blood collection tube) | 4000 | 3200 | Blood Collection Tube
Swing Rotor | No.96 | 2×2×96 holes | 4000 | 2300 | Microplate
Swing Rotor | No.97 | 6×500ml | 4000 | 3890 | Φ80×140
Swing Rotor | No.98 | 4×650ml | 4000 | 3580 | Φ99×128

Technical Specifications

• Model: CF-FL5M
• Maximum speed: 5000 r/min
• Maximum RCF: 4390×g
• Maximum capacity: 3000 ml
• Speed accuracy: ±50 r/min
• Time range: 0–99 min
• Power supply: AC 220V 50Hz or AC 110V 60Hz (20A)
• Noise level: ≤65 dB
• Dimensions: 620 × 700 × 1140 mm
• Weight: 150 kg
